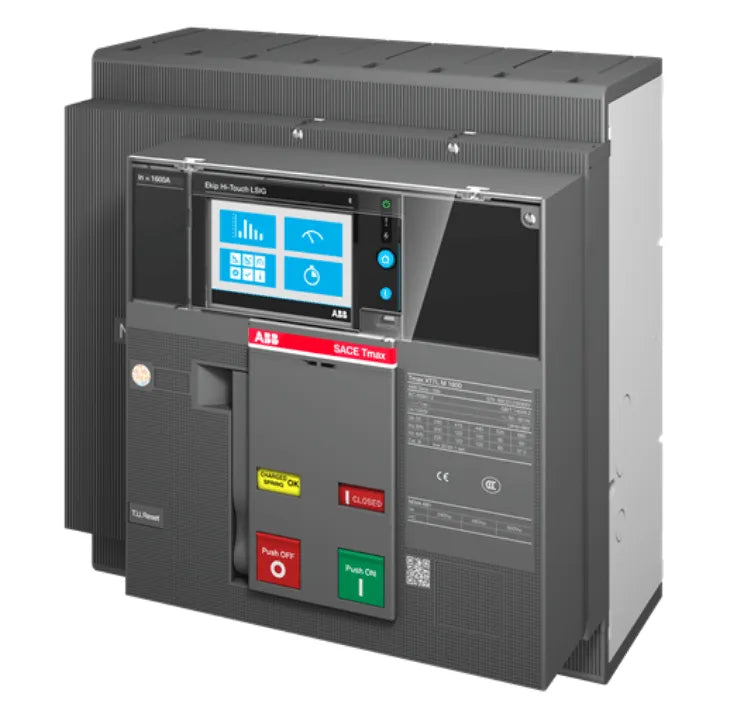

ABB Sace Tmax XT7S M 1250 Molded Case Circuit Breaker Three-pole

New product in manufacturer's box

Brand: ABB

Model: Sace Tmax XT7S M 1250 1SDA101388R1



A molded case circuit breaker, also known as an MCCB, is a specific type of electrical circuit breaker designed to protect electrical circuits from current overloads and short circuits. The main characteristic that distinguishes the molded case circuit breaker is its robust construction in a molded insulating material housing.





Molded case circuit breakers are common in industrial and commercial electrical installations and in large-scale power distribution systems. Their robust construction and ability to protect against electrical faults make them a popular choice for ensuring the safety of electrical systems. In addition, they are often equipped with tripping mechanisms that can be manually reset after an operation, making them suitable for systems where restoring power supply is a priority.





XT7S M 1250 EkipTouch Meas.LSI 1250 3pFF





C.BREAKER TMAX XT7S 1250 THREE-POLE FIXED WITH FRONT TERMINALS AND STORED ENERGY OPERATING MECHANISM AND LEVER OPERATING MECHANISM AND SOLID-STATE RELEASE IN AC EKIP TOUCH MEASURING LSI R 1250







Additional Information



Circuit breaker type to be associated: Power Distribution



Current type: AC



Electrical Durability: 120 cycles per hour 3000 cycles



Mechanical Durability: 240 cycles per hour

20,000 cycles

Number of poles: 3

Multiple Order: 1 piece

Power loss: in nominal operating conditions per pole 57 W

Main product type: SACE Tmax XT

Product Name: Molded case circuit breaker

Product Type: Automatic Circuit Breaker

Rated current (In): 1250A

Rated impulse withstand voltage (Uimp): 8kV

Rated insulation voltage (Ui): 1000V

Rated operational voltage: 690 V AC

Rated service short-circuit breaking capacity (Ics): (220 V AC) 85 kA

(230 V AC) 85 kA (240

V AC) 85 kA

(380 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 45 kA

(525 V AC) 45 kA

(690 V AC) 30 kA

Rated short-time withstand current (Icw): 20 kA

Rated ultimate short-circuit breaking capacity (Icu): (220 V AC) 85 kA

(230 V AC) 85 kA (240

V AC) 85 kA

(380 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 45 kA

(525 V AC) 45 kA

(690 V AC) 30 kA

Rated uninterrupted current (Iu): 1250A

Release: Ekip Touch Measuring LSI

Release type: ELE

Short-circuit performance level: S

Standards: IEC

Subtype: XT7M

Terminal connection type: Front



Version: F







Date: 23/10/2023

Weight: 18.000

Measurements: 40x40x30

Locator: A3P4C
