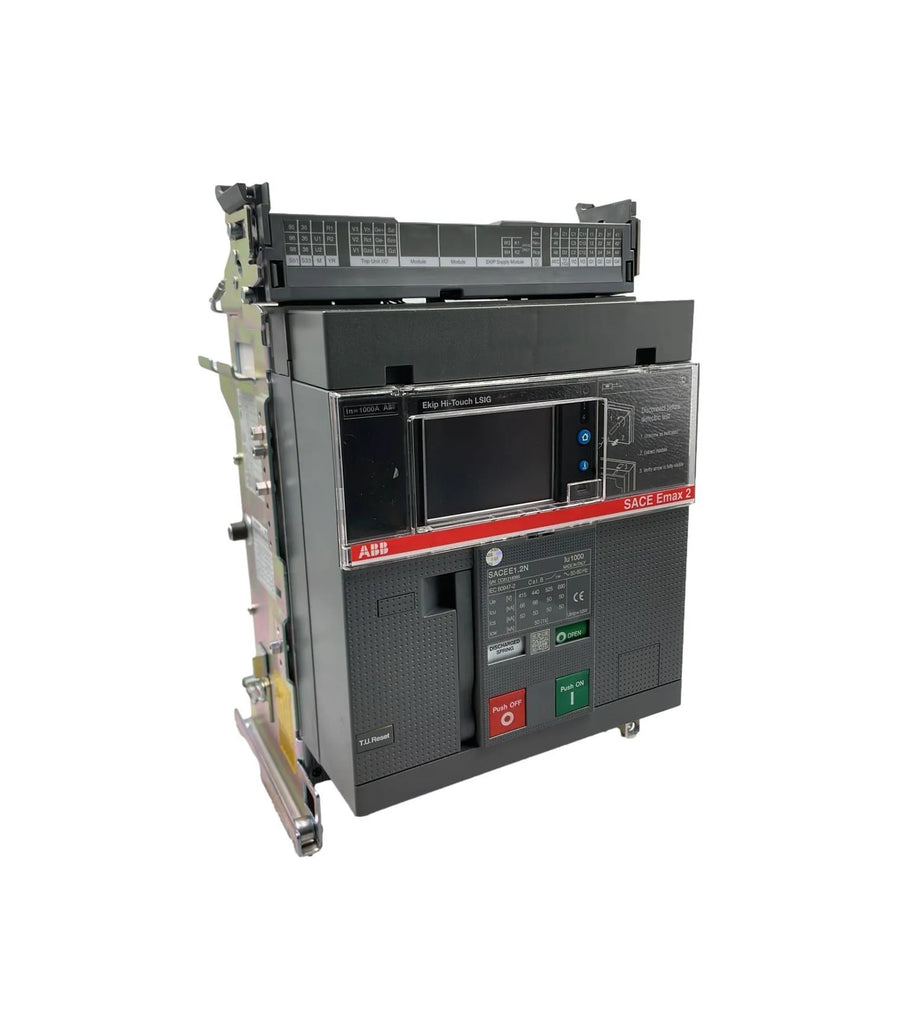

ABB SACE EMAX2 E1.2 N 1000 1000A 690v Three-Pole Circuit Breaker

New product in manufacturer's box

Brand: ABB

Model: E1.2N 1000 Ekip Hi-Touch LSIG 3p WMP 1SDA072159R1

E1.2N 1000 Ekip Hi-Touch LSIG 3p WMP

A molded case circuit breaker is an electrical protection device widely used to interrupt the flow of electrical current in a circuit when abnormal conditions occur, such as overloads or short circuits. It is called "molded case" due to its compact, molded enclosure structure that houses the internal components of the circuit breaker.

The main function of a molded case circuit breaker is to provide reliable electrical protection to prevent damage to wires, electrical devices, and, most importantly, to ensure the safety of people and property.

WITHDRAWABLE PART FOR C.BREAKER SACE EMAX2 E1.2N 1000 THREE POLES WITH SOLID STATE RELEASE IN AC EKIP/HI-TOUCH-LSIG R 1000 EQUIPPED WITH: 4 AUXILIARY CONTACTS AND C.BREAKER IN OPEN-CLOSED POSITION

Additional information

Current type: AC

Electrical Durability: Ue =< 440 V cycle 8000

Ue = 500 ... 690 V cycle 8000

30 cycles per hour

Mechanical Durability: 20,000 cycles

60 cycles per hour

Number of poles: 3

Power loss: 156W

Main product type: SACE Emax 2

Product Name: Air circuit breaker

Product type: Air circuit breaker

Rated service short-circuit breaking capacity, in % of Icu (I cs ): 100 %

Rated current (In): 1000A

Rated voltage (Ur): 690V

Rated impulse withstand voltage (U imp ): acc. to IEC 60947-2 12 kV

Rated insulation voltage (U i ): AC 1000 V

Rated operational voltage: 690 V AC

Rated service short-circuit breaking capacity (I cs ): (220 V AC) 66 kA

(230 V AC) 66 kA

(380 V AC) 66 kA

(400 V AC) 50 kA

(415 V AC) 50 kA

(440 V AC) 50 kA

(500 V AC) 50 kA

(660 V AC) 50 kA

(690 V AC) 50 kA

Rated short-time withstand current (I cw ): for 1 s 50 kA

for 3 s 30 kA

Rated ultimate short-circuit breaking capacity (I cu ): (400 V AC) 66 kA

(415 V AC) 66 kA

(440 V AC) 66 kA

(500 V AC) 50 kA

(525 V AC) 50 kA

(690 V AC) 50 kA

Rated uninterrupted current (I u ): 1000A

Release: Ekip Hi-Touch LSIG

Release type: E

Short-circuit performance level: N

Standards: CEI

Subtype: E1.2

Version: EM

Date: 06/09/2023

Weight: 19.500G

Measurements: 40X38X29

Locator: B17P1
