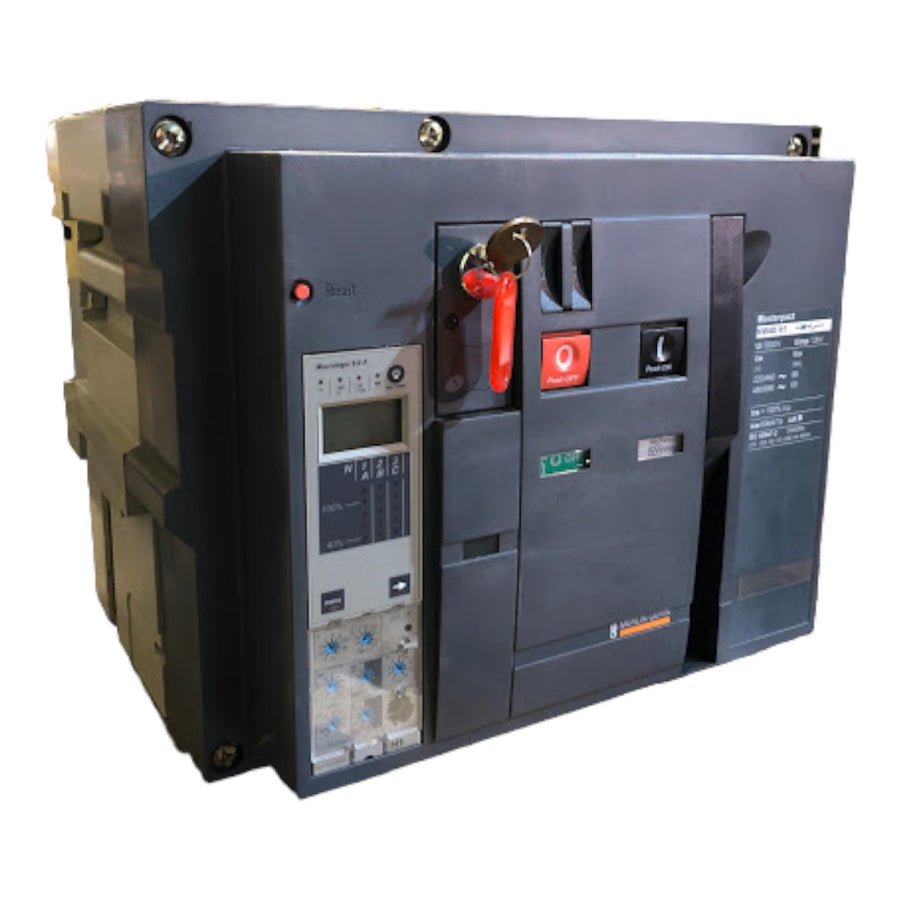

Circuit Breaker Schneider Masterpact NW40 H1 4000A 1000V 12Kv
Última unidade- Código
- WS6690
- GTIN
- 7894353016381
- Categoria
- Circuit breakers
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- Schneider
- SKU / Código interno
- WS6690
- GTIN
- 7894353016381
- Tipo de produto
- Circuit breakers
- Condição
- Condição na ficha
- Estoque
- Última unidade
- Brand
- SCHNEIDER
- Model
- NW40 H1
- AC-23A
- 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
- AC-23A
- 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
- AC-3
- 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
- Date
- 20/08/2024
- Weight
- 0.046Kg
- Measurements
- 40X35X30
- Locator
- A11P4A
Sobre o produto
Schneider Masterpact NW40 H1 4000A 1000V 12Kv Circuit Breaker
NEW product out of manufacturer's box
Brand: SCHNEIDER
A circuit breaker is a protective device used in electrical installations to automatically interrupt the flow of electric current in case of overload, short circuit, or system failure. Its main function is to protect electrical circuits, equipment, and people from damage caused by abnormal electrical conditions.
Overload Protection:
In situations where the electric current exceeds the rated value for an extended period, the circuit breaker trips to prevent wires and equipment from being damaged by the heat generated by the overload.
Short-Circuit Protection:
When a short circuit occurs, the circuit breaker trips quickly to interrupt the current flow, preventing more serious damage, such as fires.
Thermal Protection:
When there is an overload, the increased current causes a bimetallic strip in the circuit breaker to heat up and deform, tripping the circuit.
Magnetic Protection:
In case of a short circuit, a magnetic field is instantly generated, activating a mechanism that interrupts the circuit almost immediately.
Differential Protection:
In a differential circuit breaker, a current transformer detects differences between the current entering and leaving the circuit, tripping it if there is a leakage.
Circuit breaker name
MasterPact NW40H1
Product or component type
Circuit breaker
Device application
Power distribution protection
Poles description
Without control unit
[In] rated current
4000 A at 40 °C
Performance type
H1 65 kA 440 V AC
[Ue] rated operational voltage
690 V AC 50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Selectivity category
Non-illuminated push-button
[Icu] rated ultimate short-circuit breaking capacity
65 kA at 220/415 V AC 50/60 Hz
65 kA at 440 V AC 50/60 Hz
65 kA at 525 V AC 50/60 Hz
65 kA at 690 V AC 50/60 Hz
[Ics] rated service short-circuit breaking capacity
65 kA at 220/415 V AC 50/60 Hz
65 kA at 440 V AC 50/60 Hz
65 kA at 525 V AC 50/60 Hz
65 kA at 690 V AC 50/60 Hz
[Icw] rated short-time withstand current
[Icm] rated short-circuit making capacity
143 kA 220/415 V AC at 50/60 Hz
143 kA 440 V AC at 50/60 Hz
143 kA 525 V AC at 50/60 Hz
143 kA 690 V AC at 50/60 Hz
[Ui] rated insulation voltage
1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
Power dissipation in W
Maximum braking time
Mounting support
Top connections
Bottom connection
Connection pitch
Mechanical durability
10000 cycles without maintenance
20000 cycles with maintenance
Electrical durability
5000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2
2500 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2
AC-23A: 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
AC-23A: 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
Date: 20/08/2024
Weight: 0.046Kg
Measurements: 40X35X30
Locator: A11P4A
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment lies exclusively with the buyer.
Cabo Eletro Comercial LTDA thanks you.
---------------------------- ATTENTION -------------------------------
New material, never used but with stock marks.
Please check the photos to verify the condition of the items that will be delivered after purchase.
--------------------------------------------------------------------------------------------------
5 motivos para comprar na Cabo Eletro
- 01 Reputação comprovada Top seller no Mercado Livre & eBay, com histórico público de vendas.
- 02 Procedência e NF-e Faturamento por CNPJ e nota fiscal eletrônica em toda compra.
- 03 Estoque difícil de achar 12.000+ SKUs, inclusive itens fora de linha e de reposição.
- 04 Despacho rápido Itens em estoque saem em até 1 dia útil após a confirmação.
- 05 Apoio técnico Validamos código e aplicação com você antes da compra.
Vai levar vários itens? Peça um orçamento por e-mail
Envie este e outros códigos/SKUs e receba um orçamento consolidado, com nota fiscal e condições para volume. Atendemos pessoa física, jurídica e compradores internacionais.
Circuit Breaker Schneider Masterpact NW40 H1 4000A 1000V 12Kv
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Schneider Masterpact NW40 H1 4000A 1000V 12Kv Circuit Breaker
NEW product out of manufacturer's box
Brand: SCHNEIDER
Model: NW40 H1
A circuit breaker is a protective device used in electrical installations to automatically interrupt the flow of electric current in case of overload, short circuit, or system failure. Its main function is to protect electrical circuits, equipment, and people from damage caused by abnormal electrical conditions.
Overload Protection:
In situations where the electric current exceeds the rated value for an extended period, the circuit breaker trips to prevent wires and equipment from being damaged by the heat generated by the overload.
Short-Circuit Protection:
When a short circuit occurs, the circuit breaker trips quickly to interrupt the current flow, preventing more serious damage, such as fires.
How It Works:
Thermal Protection:
When there is an overload, the increased current causes a bimetallic strip in the circuit breaker to heat up and deform, tripping the circuit.
Magnetic Protection:
In case of a short circuit, a magnetic field is instantly generated, activating a mechanism that interrupts the circuit almost immediately.
Differential Protection:
In a differential circuit breaker, a current transformer detects differences between the current entering and leaving the circuit, tripping it if there is a leakage.
Range
MasterPacT
Product name
Masterpact NW
Circuit breaker name
MasterPact NW40H1
Product or component type
Circuit breaker
Device application
Power distribution protection
Poles description
3P
Control unit
Without control unit
[In] rated current
4000 A at 40 °C
Performance type
H1 65 kA 440 V AC
[Ue] rated operational voltage
690 V AC 50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Selectivity category
Category B
Control type
Non-illuminated push-button
Mounting mode
Fixed
Complementary
[Icu] rated ultimate short-circuit breaking capacity
65 kA at 220/415 V AC 50/60 Hz
65 kA at 440 V AC 50/60 Hz
65 kA at 525 V AC 50/60 Hz
65 kA at 690 V AC 50/60 Hz
[Ics] rated service short-circuit breaking capacity
65 kA at 220/415 V AC 50/60 Hz
65 kA at 440 V AC 50/60 Hz
65 kA at 525 V AC 50/60 Hz
65 kA at 690 V AC 50/60 Hz
[Icw] rated short-time withstand current
65 kA 1 s
65 kA 3 s
[Icm] rated short-circuit making capacity
143 kA 220/415 V AC at 50/60 Hz
143 kA 440 V AC at 50/60 Hz
143 kA 525 V AC at 50/60 Hz
143 kA 690 V AC at 50/60 Hz
Sensor rating
2000 A
4000 A
[Ui] rated insulation voltage
1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
12 kV
Power dissipation in W
650 W
Maximum braking time
25 ms
Closing time
70 ms
Mounting support
Backplate
Rails
Top connections
Rear
Bottom connection
Rear
Connection pitch
150 mm
Mechanical durability
10000 cycles without maintenance
20000 cycles with maintenance
Electrical durability
5000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2
2500 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2
AC-23A: 5000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
AC-23A: 2500 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
Date: 20/08/2024
Weight: 0.046Kg
Measurements: 40X35X30
Locator: A11P4A
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment lies exclusively with the buyer.
Cabo Eletro Comercial LTDA thanks you.
---------------------------- ATTENTION -------------------------------
New material, never used but with stock marks.
Please check the photos to verify the condition of the items that will be delivered after purchase.
--------------------------------------------------------------------------------------------------
