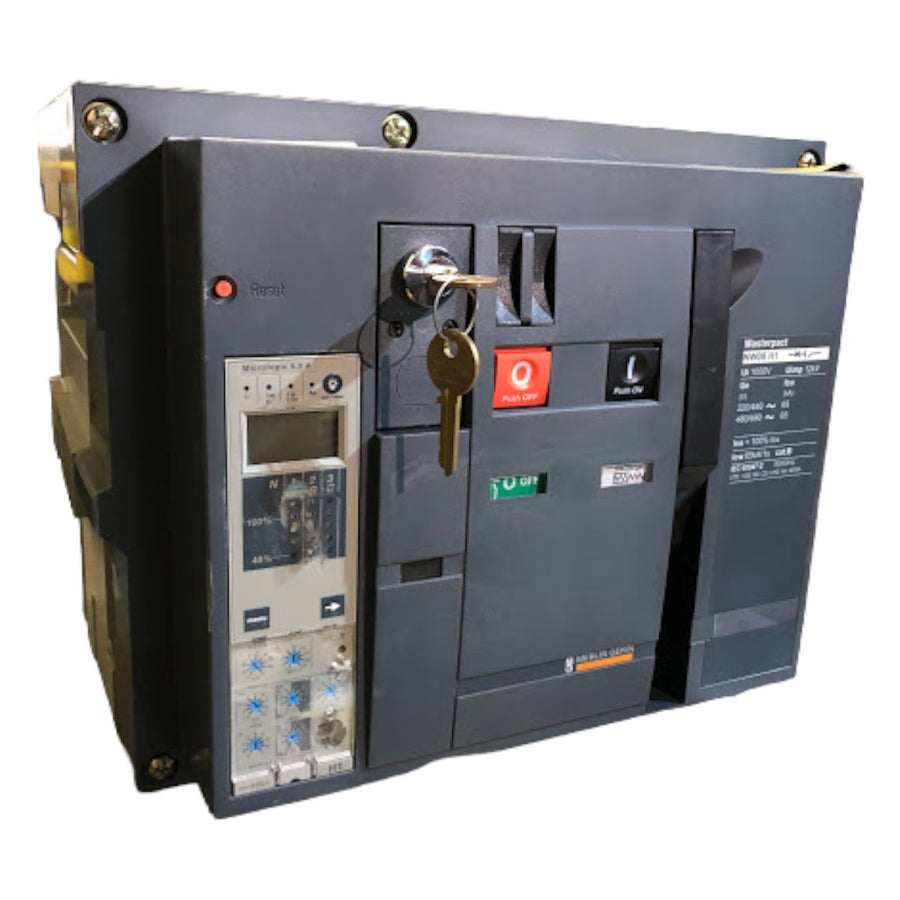

Circuit Breaker Schneider Masterpact NW08H1 800A 1000V 12kA 3P
Last unit- Code
- WS6689
- GTIN
- 7896755968497
- Category
- Circuit breakers
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Schneider
- SKU / Internal code
- WS6689
- GTIN
- 7896755968497
- Product type
- Circuit breakers
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- Schneider Masterpact
- Model
- NW08H1
- AC -23A
- 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
- AC -23A
- 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
- AC-3
- 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
- Date
- 08/23/2024
- Weight
- 56.0 kg
- Measurements
- 10x15x24
- Locator
- A11P4A
About this item
Schneider Masterpact NW08H1 Circuit Breaker 800A 1000V 12kA 3P
New product out of manufacturer's box
Brand: Schneider Masterpact
A circuit breaker is a protective device used in electrical installations to automatically interrupt the flow of electrical current in the event of an overload, short circuit, or system failure. Its primary function is to protect electrical circuits, equipment, and people from damage caused by abnormal electrical conditions.
In situations where the electrical current exceeds the nominal value for a prolonged period, the circuit breaker trips to prevent wires and equipment from being damaged by the heat generated by the overload.
Short-Circuit Protection:
When a short circuit occurs, the circuit breaker trips quickly to interrupt the current flow, preventing more severe damage, such as fires.
Unlike fuses, which need to be replaced after a fault, the circuit breaker can be manually reset after the problem is corrected.
Circuit Isolation:
The circuit breaker can also be used to manually switch off a circuit during maintenance or installation of new components.
Residential Installations:
Protection of lighting circuits, outlets, and electrical appliances.
Commercial and Industrial Installations:
Protection of equipment, machinery, and power systems.
Power Distribution Systems:
High-voltage circuit breakers protect distribution networks and substations from serious faults.
Masterpact NW08H1 Circuit Breaker - 800 A - 3 poles - draw-out - without trip unit
Circuit breaker name
MasterPact NW08H1
Product or component type
Circuit breaker
Device application
Power distribution protection
Poles description
Without control unit
[In] rated current
Performance type
H1 65 kA 440 V AC
[Ue] rated operational voltage
690 V AC 50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Selectivity category
Non-illuminated button
[Icu] rated ultimate short-circuit breaking capacity
65 kA at 220/415 V AC 50/60 Hz
65 kA at 440 V AC 50/60 Hz
65 kA at 525 V AC 50/60 Hz
65 kA at 690 V AC 50/60 Hz
[Ics] rated service short-circuit breaking capacity
65 kA at 220/415 V AC 50/60 Hz
65 kA at 440 V AC 50/60 Hz
65 kA at 525 V AC 50/60 Hz
65 kA at 690 V AC 50/60 Hz
[Icw] rated short-time withstand current
[Icm] rated short-circuit making capacity
143 kA 220/415 V AC at 50/60 Hz
143 kA 440 V AC at 50/60 Hz
143 kA 525 V AC at 50/60 Hz
143 kA 690 V AC at 50/60 Hz
[Ui] rated insulation voltage
1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
Power dissipation in W
Maximum breaking time
Mounting support
Upper connections
Lower connection
Connection pitch
Mechanical durability
12500 cycles without maintenance
25000 cycles with maintenance
Electrical durability
10000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2
10000 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2
AC -23A: 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
AC -23A: 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
Date: 08/23/2024
Weight: 56.000KG
Measurements: 10x15x24
Locator: A11P4A
Dear customers, if the material is for resale, the ICMS-ST (Tax Substitution) value may apply. If the operation is subject to this tax, payment is the exclusive responsibility of the buyer.
Cabo Eletro Comercial LTDA thanks you.
----------------------------- ATTENTION ------------------------------
New material, never used but with stock marks.
Check photos to verify the condition of the items that will be delivered after purchase.
---------------------------------------------------------------------------------------------------
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Schneider Masterpact NW08H1 Circuit Breaker 800A 1000V 12kA 3P
New product out of manufacturer's box
Brand: Schneider Masterpact
Model: NW08H1
A circuit breaker is a protective device used in electrical installations to automatically interrupt the flow of electrical current in the event of an overload, short circuit, or system failure. Its primary function is to protect electrical circuits, equipment, and people from damage caused by abnormal electrical conditions.
In situations where the electrical current exceeds the nominal value for a prolonged period, the circuit breaker trips to prevent wires and equipment from being damaged by the heat generated by the overload.
Short-Circuit Protection:
When a short circuit occurs, the circuit breaker trips quickly to interrupt the current flow, preventing more severe damage, such as fires.
Ease of Reset:
Unlike fuses, which need to be replaced after a fault, the circuit breaker can be manually reset after the problem is corrected.
Circuit Isolation:
The circuit breaker can also be used to manually switch off a circuit during maintenance or installation of new components.
Applications:
Residential Installations:
Protection of lighting circuits, outlets, and electrical appliances.
Commercial and Industrial Installations:
Protection of equipment, machinery, and power systems.
Power Distribution Systems:
High-voltage circuit breakers protect distribution networks and substations from serious faults.
Masterpact NW08H1 Circuit Breaker - 800 A - 3 poles - draw-out - without trip unit
Main
Range
Masterpact
Product name
Masterpact NW
Circuit breaker name
MasterPact NW08H1
Product or component type
Circuit breaker
Device application
Power distribution protection
Poles description
3P
Control unit
Without control unit
[In] rated current
800 A at 40 °C
Performance type
H1 65 kA 440 V AC
[Ue] rated operational voltage
690 V AC 50/60 Hz
Suitability for isolation
Yes conforming to EN/IEC 60947-2
Selectivity category
Category B
Control type
Non-illuminated button
Mounting mode
Draw-out
Complementary
[Icu] rated ultimate short-circuit breaking capacity
65 kA at 220/415 V AC 50/60 Hz
65 kA at 440 V AC 50/60 Hz
65 kA at 525 V AC 50/60 Hz
65 kA at 690 V AC 50/60 Hz
[Ics] rated service short-circuit breaking capacity
65 kA at 220/415 V AC 50/60 Hz
65 kA at 440 V AC 50/60 Hz
65 kA at 525 V AC 50/60 Hz
65 kA at 690 V AC 50/60 Hz
[Icw] rated short-time withstand current
65 kA 1 s
36 kA 3 s
[Icm] rated short-circuit making capacity
143 kA 220/415 V AC at 50/60 Hz
143 kA 440 V AC at 50/60 Hz
143 kA 525 V AC at 50/60 Hz
143 kA 690 V AC at 50/60 Hz
Sensor rating
400 A
800 A
[Ui] rated insulation voltage
1000 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage
12 kV
Power dissipation in W
100 W
Maximum breaking time
25 ms
Closing time
70 ms
Mounting support
Backplate
Rails
Upper connections
Front
Rear
Lower connection
Front
Rear
Connection pitch
115 mm
Mechanical durability
12500 cycles without maintenance
25000 cycles with maintenance
Electrical durability
10000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2
10000 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-2
AC -23A: 10000 cycles 440 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
AC -23A: 10000 cycles 690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
AC-3: 6000 cycles 440/690 V AC 50/60 Hz without maintenance conforming to EN/IEC 60947-3
Date: 08/23/2024
Weight: 56.000KG
Measurements: 10x15x24
Locator: A11P4A
Dear customers, if the material is for resale, the ICMS-ST (Tax Substitution) value may apply. If the operation is subject to this tax, payment is the exclusive responsibility of the buyer.
Cabo Eletro Comercial LTDA thanks you.
----------------------------- ATTENTION ------------------------------
New material, never used but with stock marks.
Check photos to verify the condition of the items that will be delivered after purchase.
---------------------------------------------------------------------------------------------------
5 reasons to be our customer:
 |
