Schneider GV2-P16 Motor Breaker 9-14A 690v 6kV

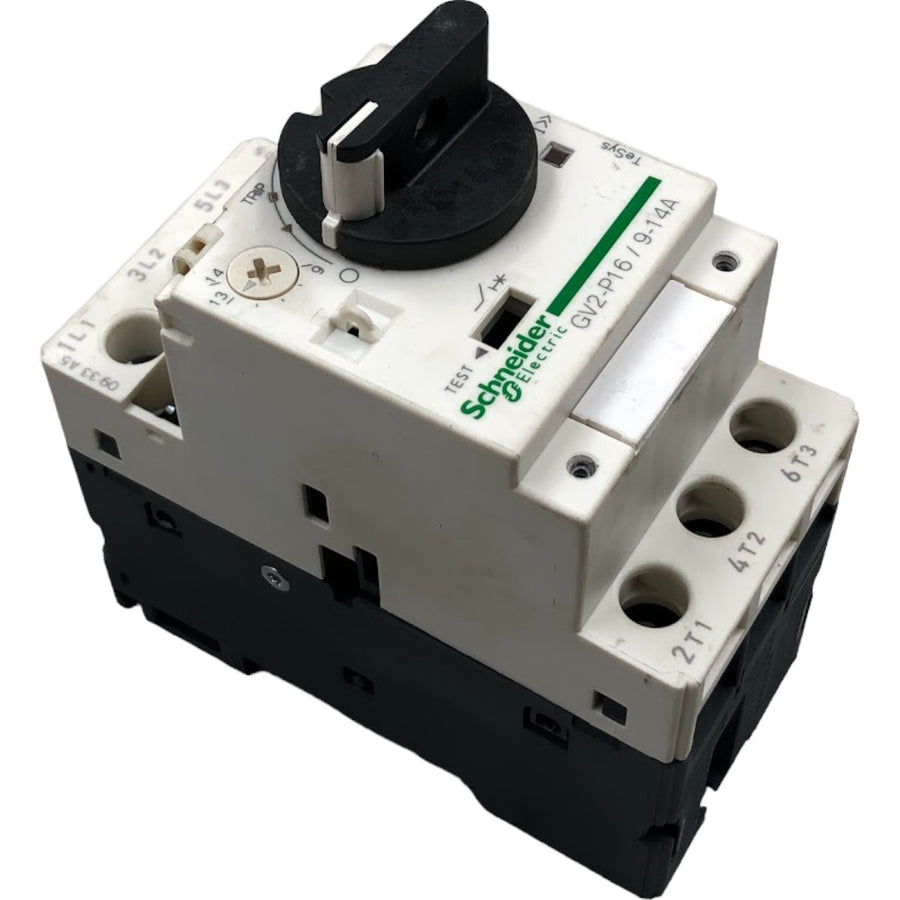

Schneider GV2-P16 Motor Circuit Breaker 9-14A 690v 6kV

New product out of manufacturer's box

Brand: Schneider

Model: GV2-P16

A motor circuit breaker, also known as a motor protection relay, is a device used to protect electric motors against overload, short circuit, and phase failures. It combines the functions of a short-circuit protection circuit breaker with the thermal protection of an overload relay, ensuring comprehensive protection for electric motors.

Motor circuit breakers are essential for ensuring the safe and efficient operation of electric motors, providing protection against a variety of electrical faults and abnormal conditions.

Tesys Deca Thermomagnetic Motor Circuit Breaker 9-14A Rotary Handle

The new generations of TeSys Deca motor circuit breakers - frame 2 offer a complete solution for almost all applications. It provides short-circuit protection, overload protection, and motor control (ON/OFF). This product has 3 poles, a capacity of 9-14A/690V, and is intended for 5.5kW/400V three-phase motor applications. It provides thermomagnetic protection with a thermal adjustment range of 9-14A, magnetic tripping at 9xIn, and a high breaking capacity of Icu 15kA@400V. Additionally, it has IP20 protection and screw terminal connection. It also allows start/stop control via a rotary handle guaranteed for 100,000 AC-3 cycles. This product is multi-standard certified (IEC, UL, CSA, CCC, EAC, Marine). Tesys Deca motor circuit breakers carry the Green PremiumTM label, which promises compliance with the latest regulations, transparency in environmental impacts, circular, and low CO2 products.

Main

Line

TeSys Deca

Product name

TeSys GV2

TeSys Deca

Product or component type

Motor circuit breaker

Device short name

GV2P

Device application

Motor protection

Trip unit technology

Thermomagnetic

Complementary

Poles description

3P

Network type

AC

Utilization category

Category A conforming to IEC 60947-2

AC-3 conforming to IEC 60947-4-1

AC-3e conforming to IEC 60947-4-1

Network frequency

50/60 Hz conforming to IEC 60947-4-1

Mounting mode

35 mm DIN rail: clip-on

Panel: screwed (with 2 x M4 screws)

Motor power kW

5.5 kW at 400/415 V AC 50/60 Hz

7.5 kW at 500 V AC 50/60 Hz

9 kW at 690 V AC 50/60 Hz

11 kW at 690 V AC 50/60 Hz

Breaking capacity

100 kA Icu at 230/240 V AC 50/60 Hz for IEC 60947-2

100 kA Icu at 400/415 V AC 50/60 Hz for IEC 60947-2

50 kA Icu at 440 V AC 50/60 Hz for IEC 60947-2

42 kA Icu at 500 V AC 50/60 Hz for IEC 60947-2

6 kA Icu at 690 V AC 50/60 Hz for IEC 60947-2

[Ics] rated service short-circuit breaking capacity

100 % at 230/240 V AC 50/60 Hz for IEC 60947-2

100 % at 400/415 V AC 50/60 Hz for IEC 60947-2

75 % at 440 V AC 50/60 Hz for IEC 60947-2

75 % at 500 V AC 50/60 Hz for IEC 60947-2

100 % at 690 V AC 50/60 Hz for IEC 60947-2

Control type

Rotary knob

[In] rated current

14 A

Thermal protection adjustment range

9…14 A conforming to IEC 60947-4-1

Magnetic tripping current

170 A

[Ith] conventional free-air thermal current

14 A conforming to IEC 60947-4-1

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Ui] rated insulation voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV IEC 60947-2

Phase failure sensitivity

Yes conforming to IEC 60947-4-1

Suitability for isolation

Yes conforming to IEC 60947-1 § 7-1-6

Power dissipation per pole

2.5 W

Mechanical durability

100000 cycles

Electrical durability

100000 cycles of AC-3 at 415 V pole

100000 cycles of AC-3e at 415 V pole

Rated for load

Continuous conforming to IEC 60947-4-1

Date: 07/22/2024

Weight: 0.314KG

Measurements: 10x15x24

Locator: A3P2A
