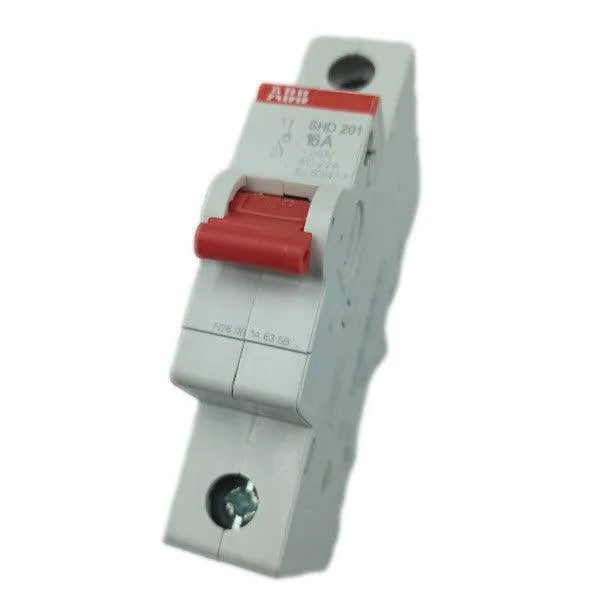

ABB SHD 201/16 16A AC-22A Single-pole Breaker
38 in stock- Code
- 7392
- GTIN
- 4016779904780
- Category
- Single-pole circuit breaker
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- ABB
- SKU / Internal code
- 7392
- GTIN
- 4016779904780
- Product type
- Single-pole circuit breaker
- Condition
- Condition shown in specs
- Stock
- 38 in stock
- Brand
- ABB
- Model
- SHD 201/16 16A AC-22A KIT 05 PCS
- Operational Voltage
- Maximum 252 V AC
- Rated Current (I n )
- 16A
- Rated Frequency (f)
- 50/60 Hz
- Power Loss
- at Rated Operating Conditions per Pole 1.01 W
- Electrical Endurance
- 20000 AC cycle
- Number of Poles
- 1
- Overvoltage Category
- III
- Tightening Torque
- 2 N·m
- Utilization Category
- Switching of resistive loads, including moderate overloads - frequent operation (DC-21A)
- Actuator Type
- Toggle
- Screw Terminal Type
- Cable Clamp
- Actuator Marking
- E/O
- Actuator Material
- Insulation Group II, Red, Sealable
- Housing Material
- Insulation Group I, RAL 7035
- Mounting Position
- Any
- Recommended Screwdriver
- Pozidriv 2
- Accessories Available
- No
- Connecting Capacity
- Flexible 0.75 ... 16 mm²
- Date
- 12/07/22
- Weight
- 0.4 kg
- Measurements
- 10X10X10
- Locator
- GP04 CL06 P06
About this item
ABB SHD 201/16 16A AC-22A Monopolar Breaker KIT 05 PCS
Model: SHD 201/16 16A AC-22A KIT 05 PCS
Technical Rated Operational Voltage: 240 V AC
Operational Voltage: Maximum 252 V AC
Maximum 63 V DC
Minimum 12 V AC
Rated Impulse Withstand Voltage (U imp ): 4 kV
at sea level 6.2 kV
Rated Current (I n ): 16A
Rated Conditional Short-Circuit Current (I nc ): 10 kA
Rated Frequency (f): 50/60 Hz
Power Loss: at Rated Operating Conditions per Pole 1.01 W
Electrical Endurance: 20000 AC cycle
Mechanical Endurance (N endu ): 20000 cycles
Number of Poles: 1
Overvoltage Category: III
Tightening Torque: 2 N·m
Utilization Category: Switching of resistive loads, including moderate overloads - frequent operation (DC-21A)
Switching of mixed resistive and inductive loads, including moderate overloads - frequent operation (AC-22A)
Actuator Type: Toggle
Screw Terminal Type: Cable Clamp
Actuator Marking: E/O
Actuator Material: Insulation Group II, Red, Sealable
Housing Material: Insulation Group I, RAL 7035
Mounting Position: Any
Recommended Screwdriver: Pozidriv 2
Accessories Available: No
Connecting Capacity: Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
Weight: 0.400kg
Measurements: 10X10X10
Locator: GP04 CL06 P06
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
ABB SHD 201/16 16A AC-22A Monopolar Breaker KIT 05 PCS
New product
Brand: ABB
Model: SHD 201/16 16A AC-22A KIT 05 PCS
Technical
-
- Rated Operational Voltage:
-
240 V AC
60 V DC
-
- Operational Voltage:
-
Maximum 252 V AC
Maximum 63 V DC
Minimum 12 V AC
-
- Rated Impulse Withstand Voltage (U imp ):
-
4 kV
at 2000 m 5 kV
at sea level 6.2 kV
-
- Rated Current (I n ):
- 16A
-
- Rated Conditional Short-Circuit Current (I nc ):
- 10 kA
-
- Rated Frequency (f):
-
50/60 Hz
DC
-
- Power Loss:
- at Rated Operating Conditions per Pole 1.01 W
-
- Electrical Endurance:
- 20000 AC cycle
-
- Mechanical Endurance (N endu ):
- 20000 cycles
-
- Number of Poles:
- 1
-
- Overvoltage Category:
- III
-
- Tightening Torque:
- 2 N·m
-
- Utilization Category:
-
Switching of resistive loads, including moderate overloads - frequent operation (DC-21A)
Switching of mixed resistive and inductive loads, including moderate overloads - frequent operation (AC-22A)
-
- Actuator Type:
- Toggle
-
- Screw Terminal Type:
- Cable Clamp
-
- Actuator Marking:
- E/O
-
- Actuator Material:
- Insulation Group II, Red, Sealable
-
- Housing Material:
- Insulation Group I, RAL 7035
-
- Mounting Position:
- Any
-
- Recommended Screwdriver:
- Pozidriv 2
-
- Accessories Available:
- No
-
- Connecting Capacity:
-
Flexible 0.75 ... 16 mm²
Rigid 0.75 ... 25 mm²
Stranded 0.75 ... 25 mm²
Date: 12/07/22
Weight: 0.400kg
Measurements: 10X10X10
Locator: GP04 CL06 P06
