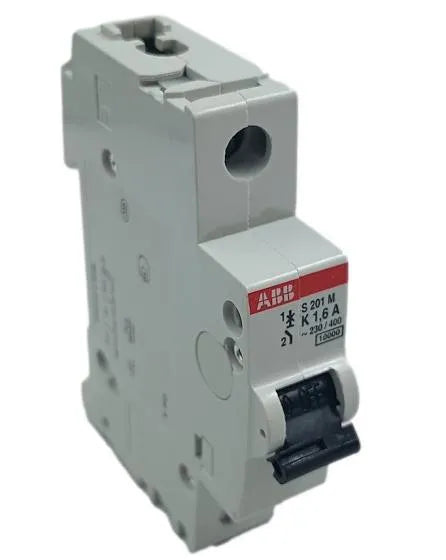

ABB S201M-K1.6 Single Pole Breaker 1.6A 230/400v 10kA
Last unit- Code
- 6651
- Category
- Single-pole circuit breaker
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- ABB
- SKU / Internal code
- 6651
- Product type
- Single-pole circuit breaker
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- ABB
- Model
- S201M-K1.6 2CDS271001R0257
- Standards
- CSA 22.2 No. 235
- Tripping characteristic
- K
- Rated operational voltage
- acc. to IEC 60898-1 230 V AC acc. to IEC 60898-1
- Operating voltage
- Maximum (Incl. Tolerance) 253 V AC
- Input voltage type
- AC/DC
- Rated current (I n )
- 1.6A
- Rated Frequency (f)
- 50/60Hz
- Power loss
- 1.5 W
- Power supply connection
- Arbitrary
- Contact Position Indication
- Red ON / Green OFF
- Energy limiting class
- 3
- Number of poles
- 1
- Number of Protected Poles
- 1
- Overvoltage category
- III
- Tightening torque
- 2.8 N·m
- Actuator type
- Toggle
- Screw terminal type
- Fail-safe bi-directional cylinder-lift terminal
- Actuator marking
- I / O
- Actuator material
- Insulation Group II, Black, Sealable
- Housing material
- Insulation Group II, RAL 7035
- DIN rail mounting
- TH35-15 (mounting rail 35 x 15 mm) according to IEC 60715
- Mounting position
- Any
- Recommended screwdriver
- Pozidriv 2
- Weight
- 0.13 kg
- Locator
- GP04CL23P4
About this item
Circuit Breaker Single Pole ABB S201M-K1.6 1.6A 230/400 10kA
New product out of manufacturer's box
Model: S201M-K1.6 2CDS271001R0257
Standards: CSA 22.2 No. 235
Tripping characteristic: K
Rated operational voltage: acc. to IEC 60898-1 230 V AC acc. to IEC 60898-1
. to IEC 60947-2 230 V AC
Operating voltage: Maximum (Incl. Tolerance) 253 V AC
Maximum (Incl. Tolerance) 72 V DC
Rated Insulation Voltage (U i ): acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (U imp ): 4 kV
at sea level 6.2 kV
Input voltage type: AC/DC
Rated current (I n ): 1.6A
Rated short-circuit breaking capacity (I cn ): (AC) 10 kA
(230 V AC) 10 kA
Maximum rated short-circuit breaking capacity (I cu ): (133 V AC) 25 kA
(230 V AC) 15 kA
Rated conditional short-circuit current (I nc ): (230 V) 15 kA
Rated service short-circuit breaking capacity (I cs ): (133 V AC) 18.8 kA
(230 V AC) 10 kA
Rated Frequency (f): 50/60Hz
Power loss: 1.5 W
at rated operating conditions per pole 1.5 W
Power supply connection: Arbitrary
Contact Position Indication: Red ON / Green OFF
Energy limiting class: 3
Mechanical Endurance (N endu ): 20,000 cycles
Number of poles: 1
Number of Protected Poles: 1
Overvoltage category: III
Tightening torque: 2.8 N·m
Actuator type: Toggle
Screw terminal type: Fail-safe bi-directional cylinder-lift terminal
Actuator marking: I / O
Actuator material: Insulation Group II, Black, Sealable
Housing material: Insulation Group II, RAL 7035
DIN rail mounting: TH35-15 (mounting rail 35 x 15 mm) according to IEC 60715
TH35-7.5 (mounting rail 35 x 7.5 mm) according to IEC 60715
Mounting position: Any
Recommended screwdriver: Pozidriv 2
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanical tripping mechanism for short-circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs from the S200M product range comply with IEC/EN 60898-1 and IEC/EN 60947-2, allowing use in residential, commercial and industrial applications. The snap-on bottom auxiliary contact can be mounted on the S200M to save 50% space.
Date 05/13/2022
Measurements 3x6x9
Locator: GP04CL23P4
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Circuit Breaker Single Pole ABB S201M-K1.6 1.6A 230/400 10kA
New product out of manufacturer's box
Brand: ABB
Model: S201M-K1.6 2CDS271001R0257
Standards: CSA 22.2 No. 235
IEC/EN 60947-2
UL 1077
Tripping characteristic: K
Rated operational voltage: acc. to IEC 60898-1 230 V AC acc. to IEC 60898-1
. to IEC 60947-2 230 V AC
Operating voltage: Maximum (Incl. Tolerance) 253 V AC
Maximum (Incl. Tolerance) 72 V DC
Rated Insulation Voltage (U i ): acc. to IEC/EN 60664-1 440 V
Rated Impulse Withstand Voltage (U imp ): 4 kV
at 2000 m 5 kV
at sea level 6.2 kV
Input voltage type: AC/DC
Rated current (I n ): 1.6A
Rated short-circuit breaking capacity (I cn ): (AC) 10 kA
(DC) 10 kA
(230 V AC) 10 kA
Maximum rated short-circuit breaking capacity (I cu ): (133 V AC) 25 kA
(230 V AC) 15 kA
Rated conditional short-circuit current (I nc ): (230 V) 15 kA
Rated service short-circuit breaking capacity (I cs ): (133 V AC) 18.8 kA
(230 V AC) 10 kA
Rated Frequency (f): 50/60Hz
Power loss: 1.5 W
at rated operating conditions per pole 1.5 W
Power supply connection: Arbitrary
Contact Position Indication: Red ON / Green OFF
Energy limiting class: 3
Mechanical Endurance (N endu ): 20,000 cycles
Number of poles: 1
Number of Protected Poles: 1
Overvoltage category: III
Tightening torque: 2.8 N·m
Actuator type: Toggle
Screw terminal type: Fail-safe bi-directional cylinder-lift terminal
Actuator marking: I / O
Actuator material: Insulation Group II, Black, Sealable
Housing material: Insulation Group II, RAL 7035
DIN rail mounting: TH35-15 (mounting rail 35 x 15 mm) according to IEC 60715
TH35-7.5 (mounting rail 35 x 7.5 mm) according to IEC 60715
Mounting position: Any
Recommended screwdriver: Pozidriv 2
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanical tripping mechanism for short-circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs from the S200M product range comply with IEC/EN 60898-1 and IEC/EN 60947-2, allowing use in residential, commercial and industrial applications. The snap-on bottom auxiliary contact can be mounted on the S200M to save 50% space.
Date 05/13/2022
Weight: 0.130
Measurements 3x6x9
Locator: GP04CL23P4
