Moeller PLS6-C10/2-MW 10A 6kA Double Pole Circuit Breaker
Last unit- Code
- 9290
- GTIN
- 7894160779127
- Category
- Circuit breakers
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Moeller
- SKU / Internal code
- 9290
- GTIN
- 7894160779127
- Product type
- Circuit breakers
- Condition
- Condition shown in specs
- Stock
- Last unit
- Weight
- 0,225 kg
About this item
Bipolar Circuit Breaker Moeller PLS6-C10/2-MW 10A 6kA
New product in manufacturer's box
Model: PLS6-C10/2-MW 242876
Miniature circuit breakers
Number of poles
Tripping characteristic
Switchgear for residential and commercial applications
Rated current [I n ]
Rated switching capacity according to IEC/EN 60898-1 [I cn ]
Rated switching capacity according to IEC/EN 60898-1 [I cn ]
DESIGN VERIFICATION ACCORDING TO IEC/EN 61439
Rated operational current for specified heat dissipation [I n ]
Heat dissipation per pole, current-dependent [P vid ]
Heat dissipation of the equipment, current-dependent [P vid ]
Static heat dissipation, not current-dependent [P vs ]
Heat dissipation capacity [P diss ]
Minimum operating ambient temperature
Maximum operating ambient temperature
linear, for +1 °C, results in a 0.5% reduction in current carrying capacity
Date 02/27/2023
Measurements: 4x9x9
Locator: GP04CL38P2
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.

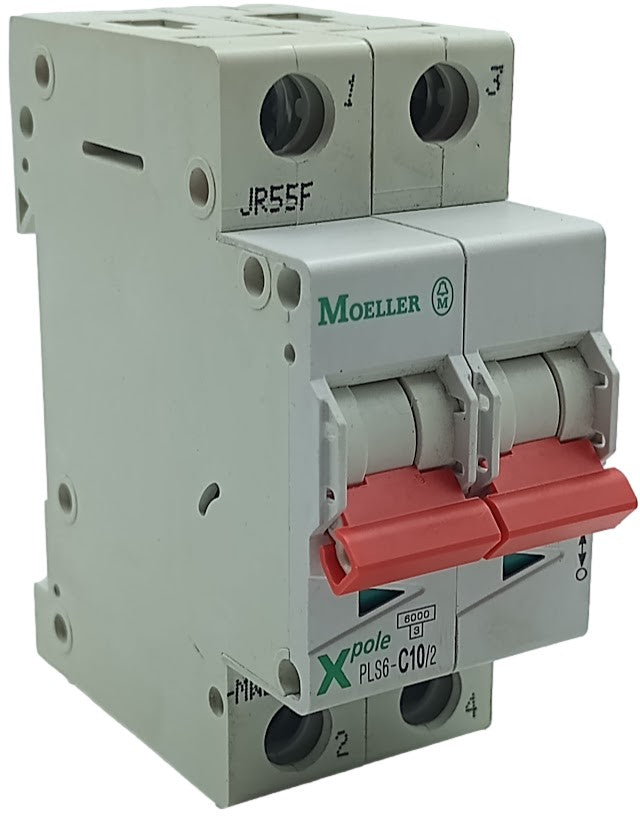

Bipolar Circuit Breaker Moeller PLS6-C10/2-MW 10A 6kA
New product in manufacturer's box
Brand: Moeller
Model: PLS6-C10/2-MW 242876
Basic function
Miniature circuit breakers
Number of poles
2 poles
Tripping characteristic
C
Application
Switchgear for residential and commercial applications
Rated current [I n ]
10A
Rated switching capacity according to IEC/EN 60898-1 [I cn ]
6 kA
Product Range
PLS6
TECHNICAL DATA
Electrical
Rated switching capacity according to IEC/EN 60898-1 [I cn ]
6 kA
DESIGN VERIFICATION ACCORDING TO IEC/EN 61439
Technical data for design verification
Rated operational current for specified heat dissipation [I n ]
10A
Heat dissipation per pole, current-dependent [P vid ]
0 W
Heat dissipation of the equipment, current-dependent [P vid ]
3W
Static heat dissipation, not current-dependent [P vs ]
0 W
Heat dissipation capacity [P diss ]
0 W
Minimum operating ambient temperature
-25°C
Maximum operating ambient temperature
+75°C
linear, for +1 °C, results in a 0.5% reduction in current carrying capacity
Date 02/27/2023
Weight: 0.225
Measurements: 4x9x9
Locator: GP04CL38P2
Cabo Eletro Comercial ltda thanks you
