Schneider Insulation Fault Detector 1518384V2

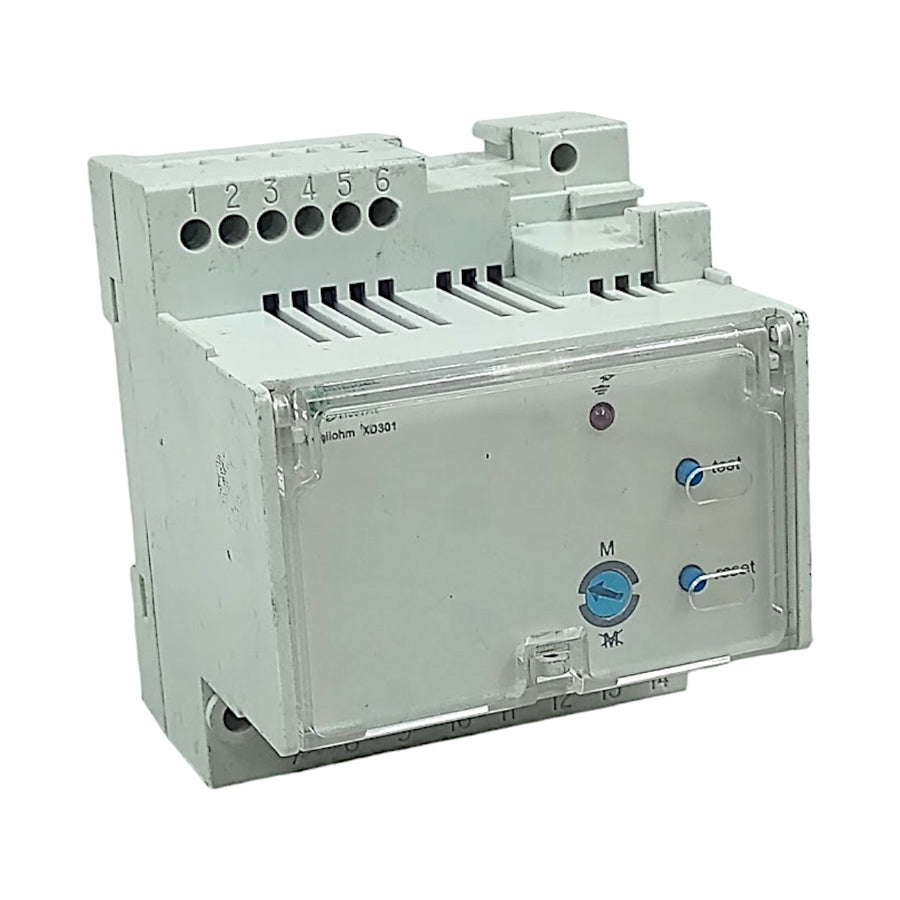

Schneider 1518384V2 220-240VAC Insulation Fault Detector

New product out of manufacturer's box

Brand: Schneider

Model: 1518384V2 220-240VAC

An insulation fault detector is a device used to monitor and detect the presence of insulation faults in electrical systems. These faults can occur when there is a malfunction or deterioration of the electrical insulation between electrical conductors or between a conductor and the ground.

The main function of an insulation fault detector is to identify any current leakage that may occur due to an insulation fault, which can pose a safety risk or cause damage to electrical equipment. When an insulation fault is detected, the detector can trigger an alarm, shut down the circuit, or activate other safety devices to prevent more serious consequences, such as fires, electric shocks, or equipment damage.

Insulation fault detectors typically work by measuring the resistance between the conductors and the ground. If the resistance drops below a certain predefined limit, it indicates the presence of an insulation fault. Some insulation fault detectors can also monitor leakage current in the circuit and trigger an alarm or shutdown if it exceeds a specified value.

The Schneider 1518384V2 Insulation Fault Detector is a crucial safety device for protecting

electrical installations against the risk of insulation faults. Its main function is to detect and indicate the presence

of dangerous leakage currents, ensuring the safety of people and equipment.

Features:

Rated voltage: 220-240 VAC

Rated frequency: 50/60 Hz

Rated current: 32 A

Sensitivity: 30 mA

Response time: < 0.5 s

Reset type: Manual

Fault indication: Red LED

Operating temperature: -5 °C to 40 °C

Protection degree: IP20

Applicable standard: IEC 61557

Functionalities:

Insulation fault detection: The detector continuously monitors the current flowing through the protected circuit. If it detects a leakage current greater than the rated value (30 mA), the device automatically shuts down the circuit, preventing the risk of electric shock.

Visual fault indication: A red LED on the front panel of the detector lights up to indicate the presence of an insulation fault. This makes it easy to identify the problem and take corrective action.

Manual reset: The detector has a manual reset button that must be pressed to re-energize the circuit after the insulation fault has been corrected. This ensures that the circuit is not accidentally re-energized while the fault persists.

Benefits:

Enhanced safety: The insulation fault detector protects people and equipment from the risk of electric shocks caused by insulation faults.

Fire prevention: Quick detection and shutdown of current in case of an insulation fault can help prevent electrical fires.

Greater reliability: The detector ensures the continuous and safe operation of the electrical installation.

Easy installation: The device is compact and easy to install in any electrical panel.

Applications:

The Schneider 1518384V2 insulation fault detector is ideal for use in various residential, commercial, and industrial applications, such as:

Residential electrical installations: houses, apartments, condominiums.

Commercial electrical installations: offices, stores, restaurants.

Industrial electrical installations: factories, power plants, warehouses.

Electrical equipment: machinery, tools, home appliances.

Date: 09/04/2024

Weight: 0.300

Measurements: 10x15x24

Locator: A10P2C

Dear customers, if the material is intended for resale, the ST (Substituição Tributária - Tax Substitution) value may apply.

If the operation is subject to this tax, the responsibility for payment lies solely with the buyer.

Cabo Eletro Comercial LTDA thanks you.

------------------------ ATTENTION --------------------------------

New material, never used but with stock marks.

Consult photos to check the condition of the items that will be delivered after purchase.

---------------------------------------------------------------------
