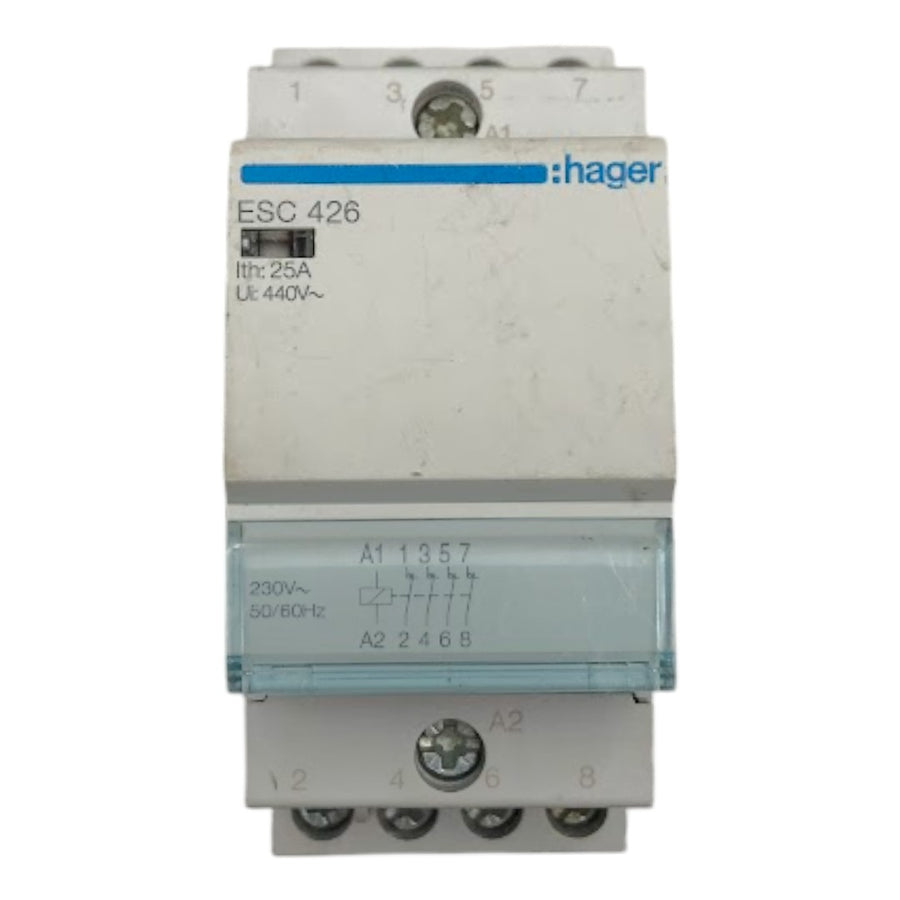

Hager ESC 426 Tetrapolar Contactor 25A 440V 50/60Hz 4NO
Última unidade- Código
- WS7430
- GTIN
- 7892977480564
- Categoria
- Automation control components
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- Hager
- SKU / Código interno
- WS7430
- GTIN
- 7892977480564
- Tipo de produto
- Automation control components
- Condição
- Condição na ficha
- Estoque
- Última unidade
- Brand
- Hager
- Model
- ESC 426
- Example
- Circuits where the neutral needs to be disconnected for safety reasons or to prevent current return.
- Number of poles
- 4P
- Rated operational voltage Ue
- 400V
- Frequency
- 50Hz
- Rated insulation voltage
- 440V
- Total power loss under IN
- 6W
- Power dissipation per coil
- 1.5W
- Number of contacts
- 4
- Type of contacts
- 4NC
- Date
- 12/04/2024
- Weight
- 0.200KG
- Measurements
- 10x15x24
- Locator
- B9P3B
Sobre o produto
Hager ESC 426 25A 440v 50/60Hz 4NC Tetrapolar Contactor
New product out of manufacturer's box
Model: ESC 426
A tetrapolar contactor is an electromechanical device used to control electrical circuits in systems that require four poles or conductors. It has four main contacts, which can be used to simultaneously connect or disconnect the four conductors of a circuit. This type of contactor is widely used in specific applications where a neutral or an additional conductor needs to be controlled along with the three phases.
Tetrapolar Contactor Applications
Three-phase systems with neutral:
Allows simultaneous control of the three phases and the neutral conductor in electrical installations.
Example: Circuits where the neutral needs to be disconnected for safety reasons or to prevent current return.
Single-phase or two-phase networks:
Can be used to control up to four single-phase or two independent two-phase circuits.
Industrial and commercial applications:
Control of three-phase public lighting with neutral.
Activation of backup systems or generators, where the neutral needs to be switched along with the phases.
Switching power supplies:
In switching systems between networks and generators, ensuring that all phases and the neutral are disconnected before switching the source.
Contactor 25A, 4NC, 230V~50Hz
Number of poles: 4P
Main electrical characteristics
Rated operational voltage Ue: 400V
Frequency: 50Hz
Rated insulation voltage: 440V
Rated impulse withstand voltage: 4kV
Total power loss under IN: 6W
Power dissipation per coil: 1.5W
Number of contacts: 4
Type of contacts: 4NC
Date: 12/04/2024
Weight: 0.200KG
Measurements: 10x15x24
Dear customers, if the material is for resale, the ST (Tax Substitution) value may apply. If the transaction is subject to this tax, the payment responsibility lies exclusively with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 motivos para comprar na Cabo Eletro
- 01 Reputação comprovada Top seller no Mercado Livre & eBay, com histórico público de vendas.
- 02 Procedência e NF-e Faturamento por CNPJ e nota fiscal eletrônica em toda compra.
- 03 Estoque difícil de achar 12.000+ SKUs, inclusive itens fora de linha e de reposição.
- 04 Despacho rápido Itens em estoque saem em até 1 dia útil após a confirmação.
- 05 Apoio técnico Validamos código e aplicação com você antes da compra.
Vai levar vários itens? Peça um orçamento por e-mail
Envie este e outros códigos/SKUs e receba um orçamento consolidado, com nota fiscal e condições para volume. Atendemos pessoa física, jurídica e compradores internacionais.
Hager ESC 426 Tetrapolar Contactor 25A 440V 50/60Hz 4NO
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Hager ESC 426 25A 440v 50/60Hz 4NC Tetrapolar Contactor
New product out of manufacturer's box
Brand: Hager
Model: ESC 426
A tetrapolar contactor is an electromechanical device used to control electrical circuits in systems that require four poles or conductors. It has four main contacts, which can be used to simultaneously connect or disconnect the four conductors of a circuit. This type of contactor is widely used in specific applications where a neutral or an additional conductor needs to be controlled along with the three phases.
Tetrapolar Contactor Applications
Three-phase systems with neutral:
Allows simultaneous control of the three phases and the neutral conductor in electrical installations.
Example: Circuits where the neutral needs to be disconnected for safety reasons or to prevent current return.
Single-phase or two-phase networks:
Can be used to control up to four single-phase or two independent two-phase circuits.
Industrial and commercial applications:
Control of three-phase public lighting with neutral.
Activation of backup systems or generators, where the neutral needs to be switched along with the phases.
Switching power supplies:
In switching systems between networks and generators, ensuring that all phases and the neutral are disconnected before switching the source.
Contactor 25A, 4NC, 230V~50Hz
ESC426
Architecture
Number of poles: 4P
Main electrical characteristics
Rated operational voltage Ue: 400V
Frequency: 50Hz
Voltage
Rated insulation voltage: 440V
Rated impulse withstand voltage: 4kV
Power
Total power loss under IN: 6W
Power dissipation per coil: 1.5W
Number of contacts: 4
Type of contacts: 4NC
Date: 12/04/2024
Weight: 0.200KG
Measurements: 10x15x24
Locator: B9P3B
