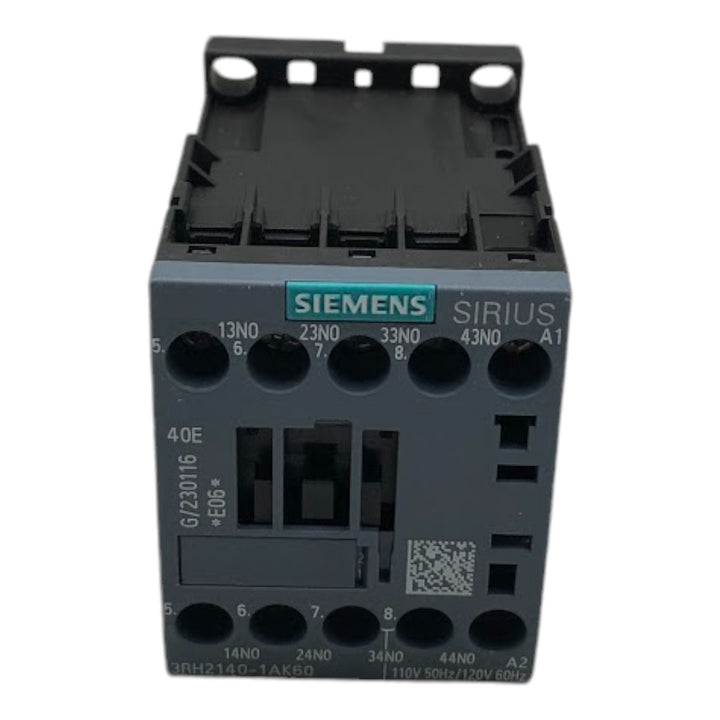

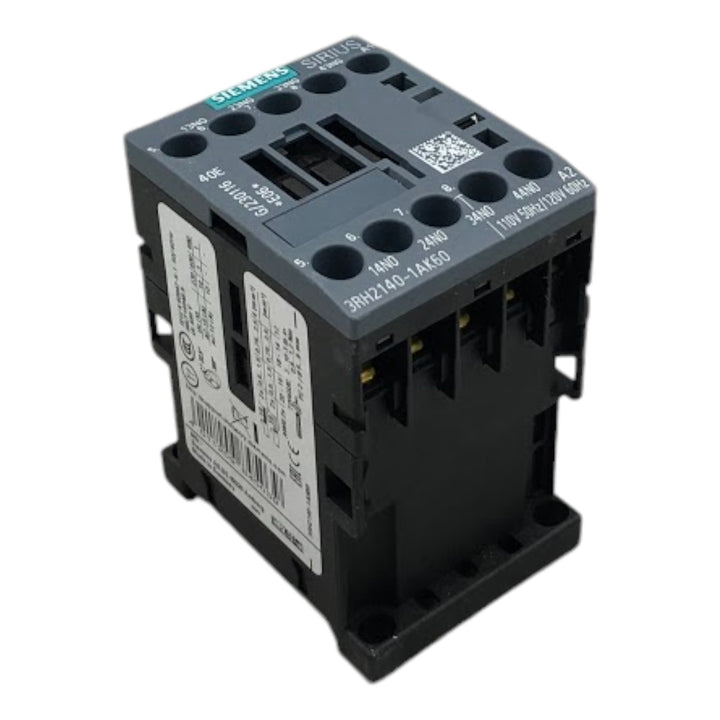

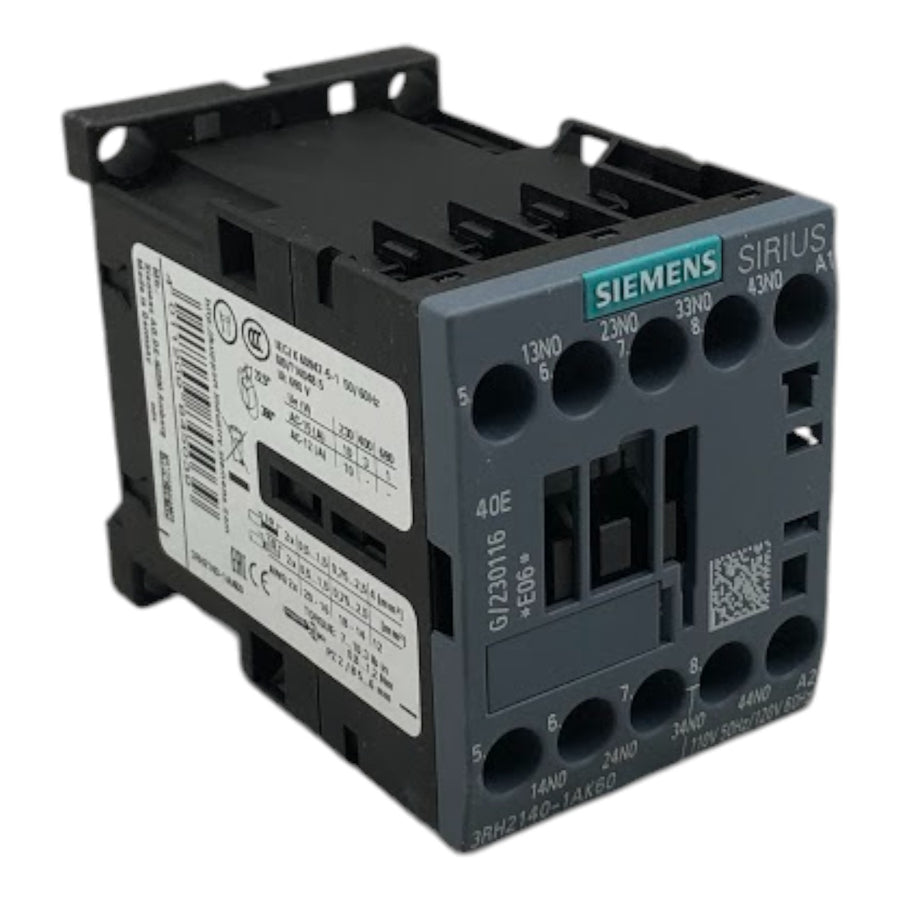

Siemens 3RH2140-1AK60 Auxiliary Contactor 110-120V 4NO
4 em estoque- Código
- WS6910
- GTIN
- 4011209845039
- Categoria
- Automation control components
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- Siemens
- SKU / Código interno
- WS6910
- GTIN
- 4011209845039
- Tipo de produto
- Automation control components
- Condição
- Condição na ficha
- Estoque
- 4 em estoque
- Brand
- Siemens
- Model
- 3RH2140-1AK60
- Signaling
- The auxiliary contactor is used to indicate the operating status of another piece of equipment (for example, whether a motor is on or off).
- Contact expansion
- It can increase the number of contacts available in a control circuit, allowing more signals to be sent or received in complex systems.
- Isolation
- It allows low-power control circuits to be isolated from larger power circuits, maintaining the safety and integrity of the systems.
- Industrial control systems
- To monitor the operation of motors, conveyors, fans, and other equipment.
- Automation
- Used in control logic in electrical panels, allowing the system to respond to various operating conditions.
- Circuit protection
- Can be used in conjunction with protective relays to trigger warning signals or shut down systems in case of failure.
- Date
- 09/16/2024
- Weight
- 0.234KG
- Measurements
- 10x15x24
- Locator
- A19P3A
Sobre o produto
Siemens Auxiliary Contactor 3RH2140-1AK60 110-120v 4NO

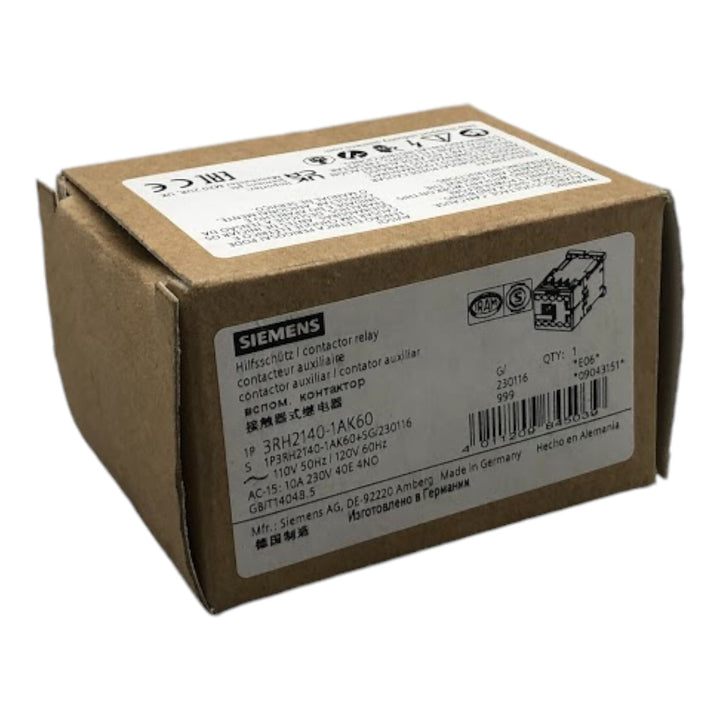

NEW product in manufacturer's box
Model: 3RH2140-1AK60
An Auxiliary Contactor is an electrical device used to assist the operation of other devices, such as main contactors, relays, and control systems in electrical circuits. It is not responsible for switching large power loads on or off, but rather for control and signaling in control circuits.
Main functions:
Signaling: The auxiliary contactor is used to indicate the operating status of another piece of equipment (for example, whether a motor is on or off).
Contact expansion: It can increase the number of contacts available in a control circuit, allowing more signals to be sent or received in complex systems.
Isolation: It allows low-power control circuits to be isolated from larger power circuits, maintaining the safety and integrity of the systems.
Industrial control systems: To monitor the operation of motors, conveyors, fans, and other equipment.
Automation: Used in control logic in electrical panels, allowing the system to respond to various operating conditions.
Circuit protection: Can be used in conjunction with protective relays to trigger warning signals or shut down systems in case of failure.
Contactor relay, 4 NO, 110 V AC, 50 Hz, 120 V, 60 Hz, size S00, screw terminal
product brand SIRIUS
product designation Auxiliary Contactor
product type designation 3RH2
General technical data
contactor size S00
product extension auxiliary switch Yes
power loss [W] for rated value of the current without load current
insulation voltage with pollution degree 3 at AC rated value 690 V
pollution degree 3
surge voltage resistance rated value 6 kV
Control circuit/Control
type of voltage of the control supply voltage AC
control supply voltage at AC
- at 50 Hz rated value 110 V
- at 60 Hz rated value 120 V
control supply voltage frequency
- 1 rated value 50 Hz
- 2 rated value 60 Hz
operating range factor of control supply voltage rated value of magnet coil at AC
- at 50 Hz 0.8 ... 1.1
- at 60 Hz 0.85 ... 1.1
apparent pick-up power of magnet coil at AC 37 VA
inductive power factor with closing power of coil 0.8
apparent holding power of magnet coil at AC 5.7 VA
inductive power factor with holding power of coil 0.25
- at AC 8 ... 33 ms
- at AC 4 ... 15 ms
arcing time 10 ... 15 ms
Date: 09/16/2024
Weight: 0.234KG
Measurements: 10x15x24
Locator: A19P3A
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 motivos para comprar na Cabo Eletro
- 01 Reputação comprovada Top seller no Mercado Livre & eBay, com histórico público de vendas.
- 02 Procedência e NF-e Faturamento por CNPJ e nota fiscal eletrônica em toda compra.
- 03 Estoque difícil de achar 12.000+ SKUs, inclusive itens fora de linha e de reposição.
- 04 Despacho rápido Itens em estoque saem em até 1 dia útil após a confirmação.
- 05 Apoio técnico Validamos código e aplicação com você antes da compra.
Vai levar vários itens? Peça um orçamento por e-mail
Envie este e outros códigos/SKUs e receba um orçamento consolidado, com nota fiscal e condições para volume. Atendemos pessoa física, jurídica e compradores internacionais.
Siemens 3RH2140-1AK60 Auxiliary Contactor 110-120V 4NO
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Siemens Auxiliary Contactor 3RH2140-1AK60 110-120v 4NO
NEW product in manufacturer's box
Brand: Siemens
Model: 3RH2140-1AK60
An Auxiliary Contactor is an electrical device used to assist the operation of other devices, such as main contactors, relays, and control systems in electrical circuits. It is not responsible for switching large power loads on or off, but rather for control and signaling in control circuits.
Main functions:
Signaling: The auxiliary contactor is used to indicate the operating status of another piece of equipment (for example, whether a motor is on or off).
Contact expansion: It can increase the number of contacts available in a control circuit, allowing more signals to be sent or received in complex systems.
Isolation: It allows low-power control circuits to be isolated from larger power circuits, maintaining the safety and integrity of the systems.
Applications:
Industrial control systems: To monitor the operation of motors, conveyors, fans, and other equipment.
Automation: Used in control logic in electrical panels, allowing the system to respond to various operating conditions.
Circuit protection: Can be used in conjunction with protective relays to trigger warning signals or shut down systems in case of failure.
Contactor relay, 4 NO, 110 V AC, 50 Hz, 120 V, 60 Hz, size S00, screw terminal
product brand SIRIUS
product designation Auxiliary Contactor
product type designation 3RH2
General technical data
contactor size S00
product extension auxiliary switch Yes
power loss [W] for rated value of the current without load current
share typical
1.43W
insulation voltage with pollution degree 3 at AC rated value 690 V
pollution degree 3
surge voltage resistance rated value 6 kV
Control circuit/Control
type of voltage of the control supply voltage AC
control supply voltage at AC
- at 50 Hz rated value 110 V
- at 60 Hz rated value 120 V
control supply voltage frequency
- 1 rated value 50 Hz
- 2 rated value 60 Hz
operating range factor of control supply voltage rated value of magnet coil at AC
- at 50 Hz 0.8 ... 1.1
- at 60 Hz 0.85 ... 1.1
apparent pick-up power of magnet coil at AC 37 VA
inductive power factor with closing power of coil 0.8
apparent holding power of magnet coil at AC 5.7 VA
inductive power factor with holding power of coil 0.25
closing delay
- at AC 8 ... 33 ms
opening delay
- at AC 4 ... 15 ms
arcing time 10 ... 15 ms
Date: 09/16/2024
Weight: 0.234KG
Measurements: 10x15x24
Locator: A19P3A
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial LTDA thanks you.
