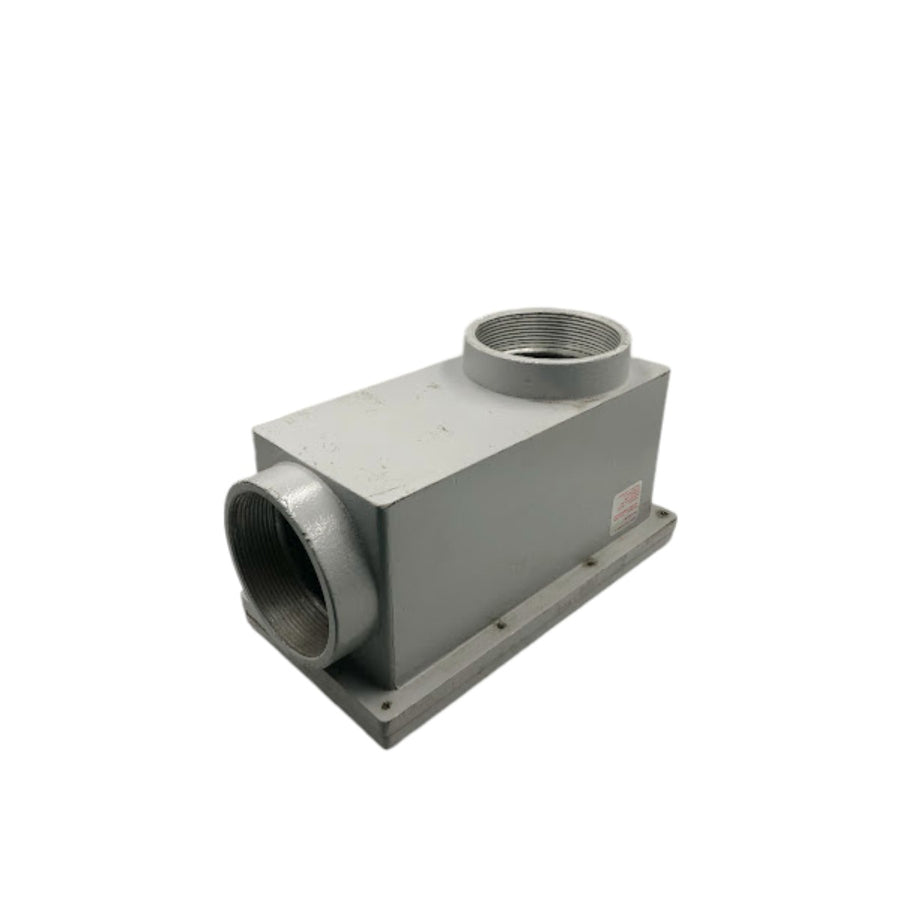

Explosion Proof Conduit Outlet Body TIPO LL 4" NPT Connection
Only 2 left- Code
- WS6901
- GTIN
- 7894089838035
- Category
- Condulets
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- CONEX
- SKU / Internal code
- WS6901
- GTIN
- 7894089838035
- Product type
- Condulets
- Condition
- Condition shown in specs
- Stock
- Only 2 left
- Brand
- CONEX
- Model
- Explosion Proof Type LL 4" NPT
- Construction material
- Made of cast aluminum alloy, providing high mechanical resistance and durability.
- Thread size
- 4 inches NPT, compatible with standard conduit systems.
- Lid fastening
- The lid is fastened to the body by means of AISI 304 stainless steel screws, ensuring corrosion resistance and sealing security.
- Standards and certifications
- Complies with ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1, and ABNT NBR IEC 60079-31 standards, guaranteeing compliance with safety standards for explosive atmospheres.
- Date
- 11/12/2024
- Weight
- 7.0 kg
- Measurements
- 20x22x35
- Locator
- A22P2B
About this item
Explosion Proof Conduit Body Type LL 4" NPT Conex
NEW product out of manufacturer's box
Model: Explosion Proof Type LL 4" NPT
An explosion-proof conduit body is an electrical junction box designed for use in areas where there is a risk of explosions due to the presence of flammable gases, vapors, dusts, or liquids. This type of conduit body serves to house electrical wire and cable connections and splices, offering additional protection so that, in the event of an internal explosion, the flame or heat does not propagate to the external environment.
Robust and Sealed Construction: Made with resistant materials such as cast aluminum or stainless steel, the conduit body has a seal to prevent flammable gases from coming into contact with internal electrical connections.
Compliance with Safety Standards: Manufactured in accordance with international standards, such as IECEx and ATEX certifications, ensuring that it can be used in areas classified as high risk.
Secure Connections and Closure: Generally features covers and screws that ensure complete sealing, preventing the entry of particles and the propagation of a possible explosion.
Function and Applications
The function of an explosion-proof conduit body is to protect electrical installations in classified areas, providing safety and preventing an internal ignition from generating an explosion in the external environment.
Type LL is a specific type of conduit body, used in electrical installations to direct and connect conduits at specific angles. It receives this name due to the position of its entries, which are designed to allow lateral access at a right angle, facilitating the creation of bends in conduit systems without the need for additional bends in the pipes themselves.
The type LL conduit body is, therefore, a practical solution for directing conduits and organizing electrical circuits at right angles, simplifying installation and maintenance.
The CONEX CX/WPX 15 4'' NPT Explosion Proof Conduit Body is an essential device in electrical installations located in potentially explosive atmospheres. Designed to act as a junction box, connection, or splice for electrical wires and cables, this conduit body ensures the integrity and safety of installations in classified areas.
Construction material: Made of cast aluminum alloy, providing high mechanical resistance and durability.
Thread size: 4 inches NPT, compatible with standard conduit systems.
Lid fastening: The lid is fastened to the body by means of AISI 304 stainless steel screws, ensuring corrosion resistance and sealing security.
Standards and certifications: Complies with ABNT NBR IEC 60079-0, ABNT NBR IEC 60079-1, and ABNT NBR IEC 60079-31 standards, guaranteeing compliance with safety standards for explosive atmospheres.
This conduit body is ideal for industrial applications where flammable gases, vapors, or combustible dusts are present, ensuring adequate protection of electrical connections and preventing ignition risks in hazardous environments.
Date: 11/12/2024
Weight: 7,000Kg
Measurements: 20x22x35
Locator: A22P2B
