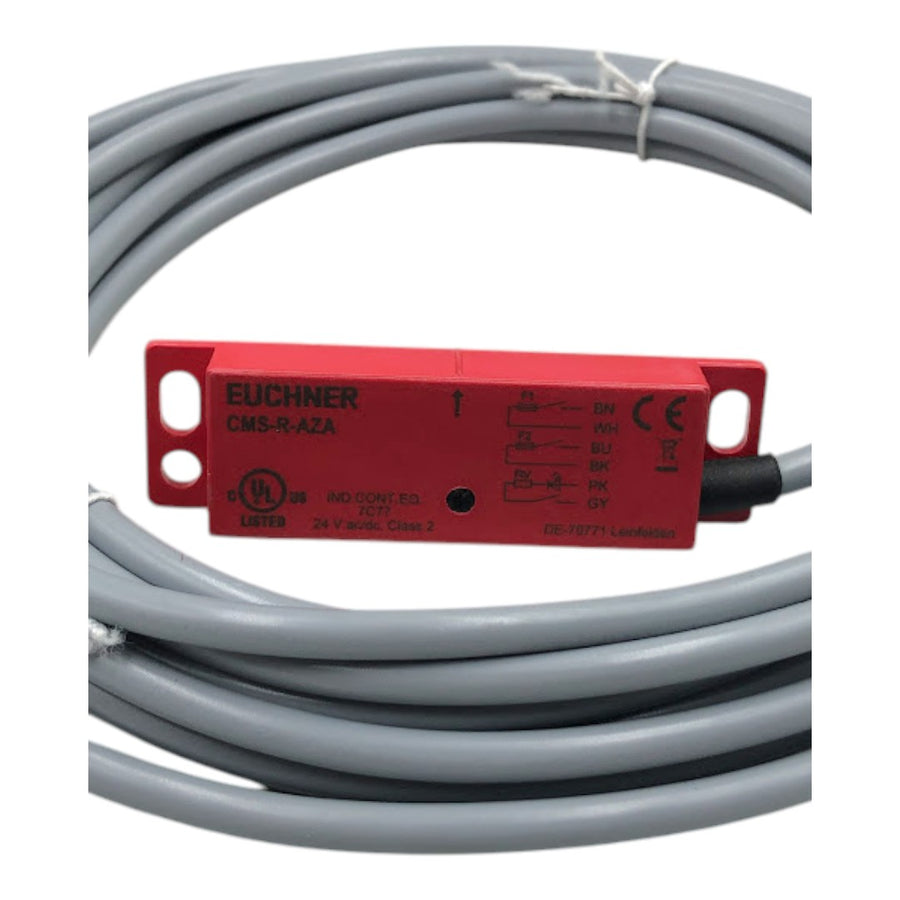

Euchner Safety Switch CMS-R-AZA-05VL 24vAC/DC
13 in stock- Code
- WS7537
- GTIN
- 7891550923467
- Category
- Electrical switches
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Euchner
- SKU / Internal code
- WS7537
- GTIN
- 7891550923467
- Product type
- Electrical switches
- Condition
- Condition shown in specs
- Stock
- 13 in stock
- Brand
- EUCHNER
- Model
- CMS-R-AZA-05VL
- Industrial machinery
- In presses, lathes, conveyor belts, etc.
- Safety doors and barriers
- To block access to hazardous areas while a machine is in operation.
- Automated processes
- To monitor and protect robotic operations or production lines.
- Cable type
- PVC
- Date
- 12/12/2024
- Weight
- 0.326 kg
- Measurements
- 10x15x24
- Locator
- A25P2B
About this item
NEW product out of the manufacturer's box
Model: CMS-R-AZA-05VL
A safety switch is a device used in industrial systems to protect operators, equipment, and processes, ensuring that dangerous machines or systems are deactivated or remain in a safe state during interventions or hazardous situations. These switches are a fundamental part of industrial safety systems.
Main Functions:
Ensures that a machine or hazardous area can only be accessed when it is in a safe state (turned off or motionless).
Emergency Stop:
Allows immediate deactivation of equipment in hazardous situations.
Restart Protection:
Prevents a machine from being restarted while a guard is open or the system is under maintenance.
Where They Are Used:
Industrial machinery: In presses, lathes, conveyor belts, etc.
Safety doors and barriers: To block access to hazardous areas while a machine is in operation.
Automated processes: To monitor and protect robotic operations or production lines.
Read heads in design A for ESM, PVC
In combination with evaluation units ESM-BA...
Square design 88 x 25 mm
Connecting cable
Cable type: PVC
Electrical connection values
Voltage supply / safety contacts, external contact protection 10 A gG slow-blow fuse
Conditional rated short-circuit current 100 A
Electrical switching frequency
with Imin = 10 mA max. 5 Hz
With rated current of 8 A 0.1 Hz
Switching voltage
Contact status indication 24 ... 35 V
Switching voltage according to UL
According to UL Class 2 max. 24 V AC/DC
Switching current
Contact status indication max. 20 mA
Parallel switching behavior
Switching delay from state change max. 26 ms
Series resistor LED
Contact status indication LED 1.5 kOhm
Mechanical and environmental values
Connection type Firmly encapsulated cable with wire terminals 0.34mm2
Number of LED indicators 1 contact status indication LED
Number of normally open contacts 2 fused normally open contacts, each 100 mA, and 1 normally open contact with LED
Tightening torque 0.4 ... 0.5 Nm
Mounting position any
Cable length 5 m
Mechanical life 100 x 10
Protection class IP67
Date: 12/12/2024
Weight: 0.326Kg
Measurements: 10x15x24
Locator: A25P2B
Dear customers, if the material is intended for resale, ST (Substituição Tributária) tax may apply. If the operation is subject to this tax, payment responsibility rests solely with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Euchner Safety Switch CMS-R-AZA-05VL 24vAC/DC
NEW product out of the manufacturer's box
Brand: EUCHNER
Model: CMS-R-AZA-05VL
A safety switch is a device used in industrial systems to protect operators, equipment, and processes, ensuring that dangerous machines or systems are deactivated or remain in a safe state during interventions or hazardous situations. These switches are a fundamental part of industrial safety systems.
Main Functions:
Interlocking:
Ensures that a machine or hazardous area can only be accessed when it is in a safe state (turned off or motionless).
Emergency Stop:
Allows immediate deactivation of equipment in hazardous situations.
Restart Protection:
Prevents a machine from being restarted while a guard is open or the system is under maintenance.
Where They Are Used:
Industrial machinery: In presses, lathes, conveyor belts, etc.
Safety doors and barriers: To block access to hazardous areas while a machine is in operation.
Automated processes: To monitor and protect robotic operations or production lines.
Read heads in design A for ESM, PVC
In combination with evaluation units ESM-BA...
Square design 88 x 25 mm
Connecting cable
1 LED
Cable type: PVC
Electrical connection values
Hedging
Voltage supply / safety contacts, external contact protection 10 A gG slow-blow fuse
Conditional rated short-circuit current 100 A
Electrical switching frequency
with Imin = 10 mA max. 5 Hz
With rated current of 8 A 0.1 Hz
Switching voltage
Contact status indication 24 ... 35 V
24 ... 35 V
Switching voltage according to UL
According to UL Class 2 max. 24 V AC/DC
Switching current
max. 100 mA
Contact status indication max. 20 mA
Parallel switching behavior
Switching delay from state change max. 26 ms
Series resistor LED
Contact status indication LED 1.5 kOhm
Mechanical and environmental values
Connection type Firmly encapsulated cable with wire terminals 0.34mm2
Number of LED indicators 1 contact status indication LED
Number of normally open contacts 2 fused normally open contacts, each 100 mA, and 1 normally open contact with LED
Tightening torque 0.4 ... 0.5 Nm
Design A
Mounting position any
Cable length 5 m
Mechanical life 100 x 10
Protection class IP67
Date: 12/12/2024
Weight: 0.326Kg
Measurements: 10x15x24
Locator: A25P2B
