Flow Switch Escontrol CFP/FH-ET-20 2 SPDT-1A / 24VDC
Last unit- Code
- WS664
- Category
- Electrical switches
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Escontrol
- SKU / Internal code
- WS664
- Product type
- Electrical switches
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- Escontrol
- Model
- CFP/FH-ET-20
- Important
- For electrical installation in classified areas, NBR-IEC 60079-14:2009 must be followed,
- 60079-19
- 2010.
- Weight
- 4.3 kg
- Measurements
- 16x16x52
- Locator
- B8P3A
About this item

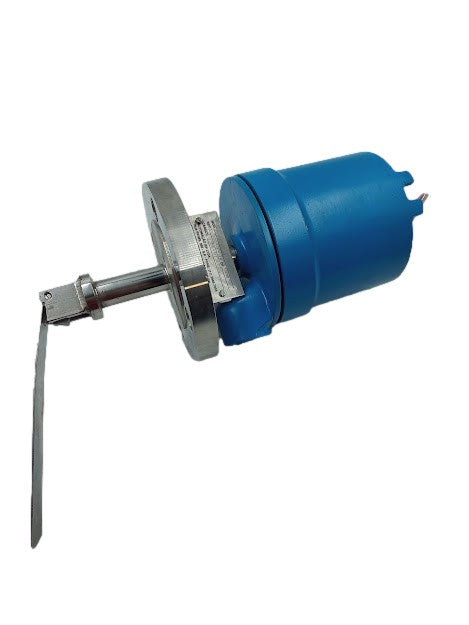

Escontrol Flow Switch CFP/FH-ET-20 2 SPDT-1A / 24vcc
New Product Out of Manufacturer's Box
Brand: Escontrol
Model: CFP/FH-ET-20
Escontrol's CFP series paddle flow switches are
recommended for pipelines from 1" onwards, for both liquids
and gases. It is a very robust equipment with a simple mechanism,
requiring minimal maintenance.
It can indicate up to 2 distinct points. The process connection is
fully adaptable to the client's needs, being either
threaded from 1", NPT or BSP, or flanged ANSI, DIN or TC.
The constructive design also allows the application of a wide variety of
materials, such as stainless steel (AISI 304/316), special alloys
(Monel, Hastelloy, etc.), as well as plastic materials such as
polypropylene, PTFE, etc.
The Ex d IIC T6 Gb IP65/IP67 protection is provided by means of the
standard Escontrol enclosure model APE-116-ES, with TÜV 11.0109 X
certificate. It is a versatile box designed to be
adapted to a range of Escontrol's explosion-proof flow and level instruments.
Its first certification dates back to 1989, a pioneering and time-proven design.
The operating principle of CFP-E flow switches is simple: basically,
the movement of the flow through the pipeline displaces the paddle, which in turn moves a
magnetic assembly that actuates a microswitch or a reed switch. Thus, the flow's movement
actuates a switch that indicates the presence of flow in the process. It is important to note that
the fluid is completely isolated from the electrical part by AISI 316 stainless steel, which can withstand up to
The adjustment of the CFP-E is done through the paddle profile, dimensioned for the
specified piping, the useful length must at least exceed the center line of the
process piping. Fine adjustment can be made by changing the position of the control block
inside the enclosure. It is configured by default to be as sensitive as possible,
only indicating whether or not there is flow in the pipeline.
Flow switches can be installed in horizontal or vertical pipelines
(in this case, it must be requested) for upward or downward flow.
Important: For electrical installation in classified areas, NBR-IEC 60079-14:2009 must be followed,
and for equipment repair, NBR-IEC 60079-19:2010.
Date 06/13/2023
Measurements: 16x16x52
Dear customers, if the material is for resale, the ST (Tax Substitution) value may be incurred. If the operation is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial Ltda thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Escontrol Flow Switch CFP/FH-ET-20 2 SPDT-1A / 24vcc
New Product Out of Manufacturer's Box
Brand: Escontrol
Model: CFP/FH-ET-20
Escontrol's CFP series paddle flow switches are
recommended for pipelines from 1" onwards, for both liquids
and gases. It is a very robust equipment with a simple mechanism,
requiring minimal maintenance.
It can indicate up to 2 distinct points. The process connection is
fully adaptable to the client's needs, being either
threaded from 1", NPT or BSP, or flanged ANSI, DIN or TC.
The constructive design also allows the application of a wide variety of
materials, such as stainless steel (AISI 304/316), special alloys
(Monel, Hastelloy, etc.), as well as plastic materials such as
polypropylene, PTFE, etc.
The Ex d IIC T6 Gb IP65/IP67 protection is provided by means of the
standard Escontrol enclosure model APE-116-ES, with TÜV 11.0109 X
certificate. It is a versatile box designed to be
adapted to a range of Escontrol's explosion-proof flow and level instruments.
Its first certification dates back to 1989, a pioneering and time-proven design.
The operating principle of CFP-E flow switches is simple: basically,
the movement of the flow through the pipeline displaces the paddle, which in turn moves a
magnetic assembly that actuates a microswitch or a reed switch. Thus, the flow's movement
actuates a switch that indicates the presence of flow in the process. It is important to note that
the fluid is completely isolated from the electrical part by AISI 316 stainless steel, which can withstand up to
60kgf/cm².
The adjustment of the CFP-E is done through the paddle profile, dimensioned for the
specified piping, the useful length must at least exceed the center line of the
process piping. Fine adjustment can be made by changing the position of the control block
inside the enclosure. It is configured by default to be as sensitive as possible,
only indicating whether or not there is flow in the pipeline.
Flow switches can be installed in horizontal or vertical pipelines
(in this case, it must be requested) for upward or downward flow.
Important: For electrical installation in classified areas, NBR-IEC 60079-14:2009 must be followed,
and for equipment repair, NBR-IEC 60079-19:2010.
60079-19:2010.
Date 06/13/2023
Weight: 4.300
Measurements: 16x16x52
Locator: B8P3A
