Control Switch 4P Bartec 07-3331
Last unit- Code
- WS2544
- Category
- Selector switch
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Bartec
- SKU / Internal code
- WS2544
- Product type
- Selector switch
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- Bartec
- Model
- 07-3331
- Switching function
- max. 4 switching contacts
- Contacts
- contacts with positive breaking operation
- Installation
- in double and triple ComEx enclosures and in
- Switching function
- max. 4 switching contacts
- Contacts
- contacts with positive breaking operation
- Installation
- in double and triple ComEx enclosures and in
- Three-phase
- AC-23: 25 A 690 V
- 3x main contacts and
- AC-3: 20 A 400 V
- 1x auxiliary contact
- AC-3: 16 A 690 V
- Date
- 11/24/2023
- Weight
- 0.175 kg
- Measurements
- 6x7x8
- Locator
- A2P2A
About this item

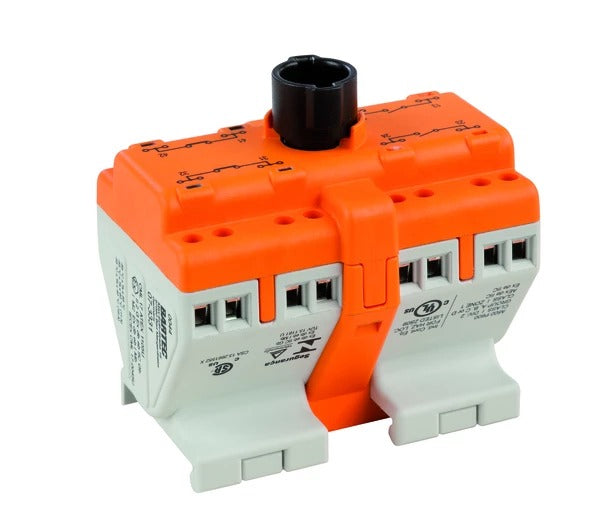

Bartec 07-3331 4P Control Switch
New product out of manufacturer's box
ComEx control switch and disconnect switch
Installation module, 4-pole.
This control switch was designed to solve a variety of problems encountered in chemical and petrochemical plants and in explosion-proof electrical machinery. Four switching contacts as opening and closing elements in different permutations allow a variety of functions. The opener has a positive break operation. The switch actuator offers latched and momentary contact positions with different switch positions. The control switch can be installed quickly and directly in double or triple ComEx enclosures or in combination with other command devices in control units.
Benefits
- Contacts with positive breaking operation
- Latched and momentary contact positions
Connection terminals 2.5 mm2
, finely stranded
4 mm², finely stranded for disconnectors
Switching function: max. 4 switching contacts
different NC/NO contact sets
latching and momentary contact functions
with different switch positions
Contacts: contacts with positive breaking operation
(self-cleaning)
Installation: in double and triple ComEx enclosures and in
control units as floor and front panel mounting
Connection terminals 2.5 mm2
, finely stranded
4 mm², finely stranded for disconnectors
Switching function: max. 4 switching contacts
different NC/NO contact sets
latching and momentary contact functions
with different switch positions
Contacts: contacts with positive breaking operation
(self-cleaning)
Installation: in double and triple ComEx enclosures and in
control units as floor and front panel
Three-phase: AC-23: 25 A 690 V
3x main contacts and: AC-3: 20 A 400 V
1x auxiliary contact: AC-3: 16 A 690 V
Date: 11/24/2023
Measurements: 6x7x8
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the transaction is subject to this tax, the buyer is solely responsible for payment.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Bartec 07-3331 4P Control Switch
New product out of manufacturer's box
Brand: Bartec
Model: 07-3331
ComEx control switch and disconnect switch
Installation module, 4-pole.
This control switch was designed to solve a variety of problems encountered in chemical and petrochemical plants and in explosion-proof electrical machinery. Four switching contacts as opening and closing elements in different permutations allow a variety of functions. The opener has a positive break operation. The switch actuator offers latched and momentary contact positions with different switch positions. The control switch can be installed quickly and directly in double or triple ComEx enclosures or in combination with other command devices in control units.
Benefits
- Contacts with positive breaking operation
- Latched and momentary contact positions
Technical data
Connection terminals 2.5 mm2
, finely stranded
4 mm², finely stranded for disconnectors
Switching function: max. 4 switching contacts
different NC/NO contact sets
latching and momentary contact functions
with different switch positions
Contacts: contacts with positive breaking operation
(self-cleaning)
Installation: in double and triple ComEx enclosures and in
control units as floor and front panel mounting
mounting
Technical data
Connection terminals 2.5 mm2
, finely stranded
4 mm², finely stranded for disconnectors
Switching function: max. 4 switching contacts
different NC/NO contact sets
latching and momentary contact functions
with different switch positions
Contacts: contacts with positive breaking operation
(self-cleaning)
Installation: in double and triple ComEx enclosures and in
control units as floor and front panel
mounting
Three-phase: AC-23: 25 A 690 V
3x main contacts and: AC-3: 20 A 400 V
1x auxiliary contact: AC-3: 16 A 690 V
Date: 11/24/2023
Weight: 0.175
Measurements: 6x7x8
Locator: A2P2A
