Pepperl+Fuchs WE77/EX1 115V Amplifier Switch
Last unit- Code
- WS915
- Category
- Electrical switches
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Pepperl+Fuchs
- SKU / Internal code
- WS915
- Product type
- Electrical switches
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- Pepperl+Fuchs
- Model
- WE77/EX1
- Date
- 06/29/2023
- Weight
- 0.312 kg
- Measurements
- 11x7x4
- Locator
- B11P2A
About this item

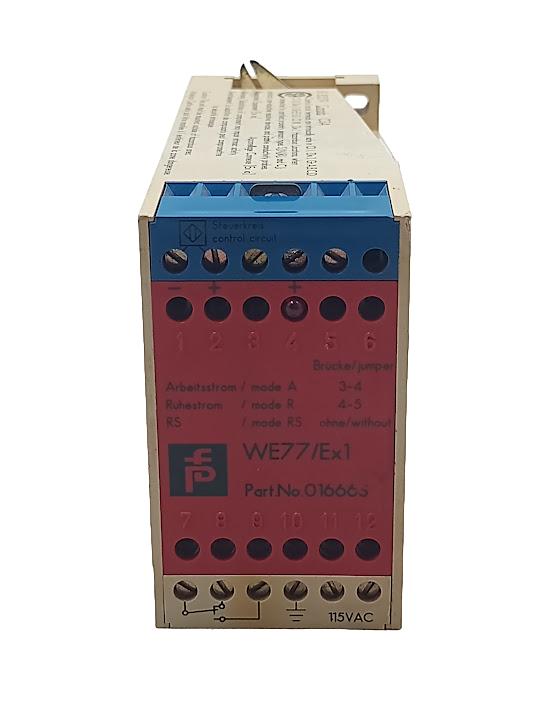

Pepperl+Fuchs Hydro WE77/EX1 Relay Amplifier
New product out of manufacturer's box
Brand: Pepperl+Fuchs
Model: WE77/EX1
Switch Amplifier WE77/Ex-1 115V
EEx ia IIC control circuit
115V AC supply voltage
Reversible mode of operation
Lead break monitoring (LB)
1 relay contact output (changeover contact)
General Specifications
signal type Digital input
Connection terminals 11, 12
Rated voltage 103.5 ... 126 V AC, 45 ... 65 Hz
Power dissipation 1.6 W
Power consumption Approx. 2.3 VA
Connection side field side
Connection terminals 1-, 2+
Rated values acc. to EN 60947-5-6 (NAMUR), please refer to the manual for electrical data
Open circuit voltage/short circuit current Approx. 8 V DC / approx. 8mA
Switching point/switching hysteresis 1.2 ... 2.1 mA / approx. 0.2 mA
Pulse/pause ratio min. 0.5ms/min. 0.5ms
Line fault detection break I
Connection side control side
Connection terminals 7, 8, 9
Output signal; relay
Contact loading 253 V AC/2 A/500 VA/cos ϕ min. 0.7; 125 V AC/4 A/500 VA cos ϕ min. 0.7; 40 V DC/2 A/80 W ohmic load
Switch-on/switch-off delay Approx. 10 ms / approx. 20ms
Mechanical life 10 7 switching cycles
Transfer Characteristics
Switching frequency
Galvanic isolation
Input/Output reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V eff
Input/Supply reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V eff
Output/Power supply basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 V eff
Indicators/settings
Display elements LED
Date: 06/29/2023
Measurements: 11x7x4
Locator: B11P2A
Dear customers, if the material is for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial ltda thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Pepperl+Fuchs Hydro WE77/EX1 Relay Amplifier
New product out of manufacturer's box
Brand: Pepperl+Fuchs
Model: WE77/EX1
Switch Amplifier WE77/Ex-1 115V
1 channel
EEx ia IIC control circuit
115V AC supply voltage
Reversible mode of operation
Lead break monitoring (LB)
1 relay contact output (changeover contact)
General Specifications
signal type Digital input
Supply
Connection terminals 11, 12
Rated voltage 103.5 ... 126 V AC, 45 ... 65 Hz
Power dissipation 1.6 W
Power consumption Approx. 2.3 VA
Input
Connection side field side
Connection terminals 1-, 2+
Rated values acc. to EN 60947-5-6 (NAMUR), please refer to the manual for electrical data
Open circuit voltage/short circuit current Approx. 8 V DC / approx. 8mA
Switching point/switching hysteresis 1.2 ... 2.1 mA / approx. 0.2 mA
Pulse/pause ratio min. 0.5ms/min. 0.5ms
Line fault detection break I < 0.1 mA
Output
Connection side control side
Connection terminals 7, 8, 9
Output signal; relay
Contact loading 253 V AC/2 A/500 VA/cos ϕ min. 0.7; 125 V AC/4 A/500 VA cos ϕ min. 0.7; 40 V DC/2 A/80 W ohmic load
Switch-on/switch-off delay Approx. 10 ms / approx. 20ms
Mechanical life 10 7 switching cycles
Transfer Characteristics
Switching frequency < 10 Hz
Galvanic isolation
Input/Output reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V eff
Input/Supply reinforced insulation according to IEC/EN 61010-1, rated insulation voltage 300 V eff
Output/Power supply basic insulation according to IEC/EN 61010-1, rated insulation voltage 300 V eff
Indicators/settings
Display elements LED
Date: 06/29/2023
Weight: 0.312
Measurements: 11x7x4
Locator: B11P2A
