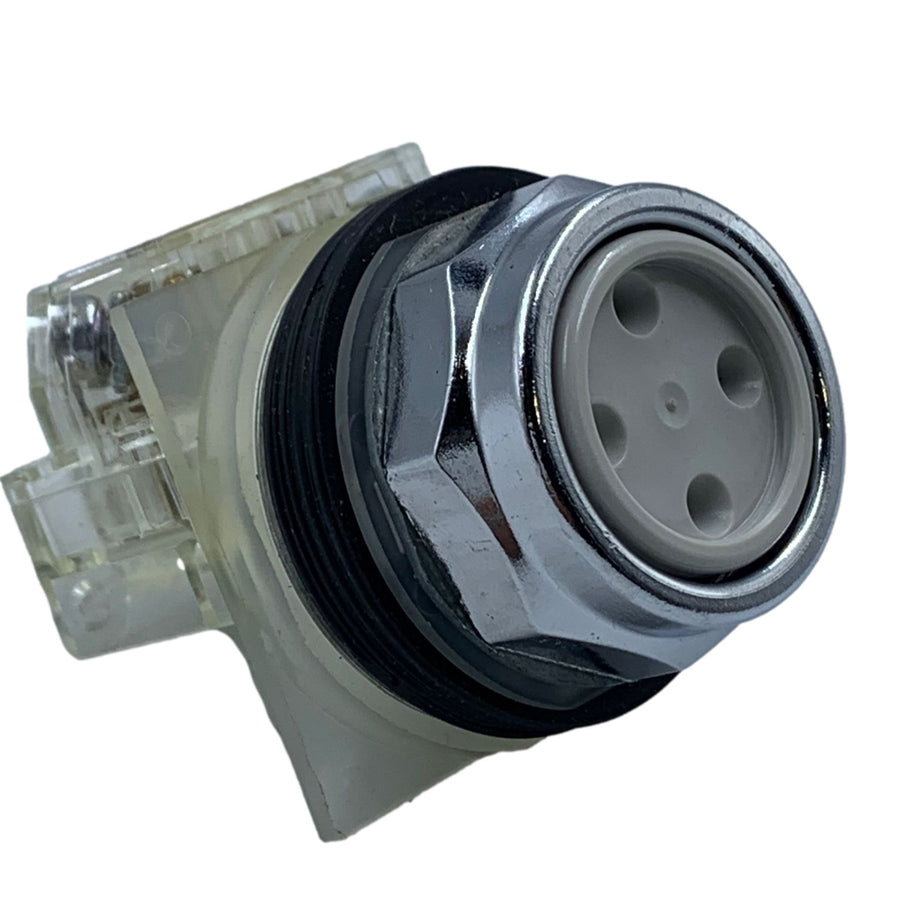

Telemecanique 9001KR1UH13 30mm NA+NC Metal Pushbutton
Last unit- Code
- WS414
- GTIN
- 3389110910988
- Category
- Electric switches
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- TELEMECANIQUE
- SKU / Internal code
- WS414
- GTIN
- 3389110910988
- Product type
- Electric switches
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- Telemecanique
- Model
- 9001KR1UH13
- Weight
- 0.132 kg
- Measurements
- 4x5x9
- Locator
- B4P3B
About this item
Telemecanique 9001KR1UH13 30mm Metal Pushbutton NO+NC
New product in manufacturer's box
Brand: Telemecanique
Model: 9001KR1UH13
Ø30mm metal pushbutton, spring return, colored inserts, NO+NC
Product or component type
Non-illuminated push button
Device short name
Actuator characteristic
Choose 7 colors Flush, Without engraving
Additional actuator information
Mounting diameter
Signaling unit head shape
Contact type and composition
Connections - terminals
Screw terminals 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1
Tightening torque
0.8 N.m conforming to IEC 60947-1
Screw head shape
With cross slots
Mechanical durability
Operating position
[Ie] rated operational current
3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 kV IEC 60947-1
Contact material
Silver alloy contacts
Contact operation
Positive opening
Overload and short-circuit protection
10 A Cartridge fuse type conforming to IEC 60947-5-1
[Ith] conventional free air thermal current
[Icm] rated short-circuit closing capacity
12 kA at 600 V AC-15, 7200 VA
15 kA at 480 V AC-15, 7200 VA
30 kA at 240 V AC-15, 7200 VA
60 kA at 120 V AC-15, 7200 VA
0.1 kA at 600 V DC-13
0.27 kA at 250 V DC-13
0.55 kA at 125 V DC-13
Rated breaking capacity
3 kA at 240 V AC-15, 720 VA
6 kA at 120 V AC-15, 720 VA
1.2 kA at 600 V AC-15, 720 VA
1.5 kA at 480 V AC-15, 720 VA
0.1 kA at 600 V DC-13
0.27 kA at 250 V DC-13
0.55 kA at 125 V DC-13
ISO n° 1 terminals description
(13-14-11-12) OF
Date 02/06/2023
Measurements: 4x5x9
Dear customers, if the material is for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, payment is the sole responsibility of the buyer.
Cabo Eletro Comercial ltda thanks you
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Telemecanique 9001KR1UH13 30mm Metal Pushbutton NO+NC
New product in manufacturer's box
Brand: Telemecanique
Model: 9001KR1UH13
Ø30mm metal pushbutton, spring return, colored inserts, NO+NC
Main
Product line
Harmony 9001K
Product or component type
Non-illuminated push button
Device short name
9.001K
Actuator type
Spring return
Actuator characteristic
Choose 7 colors Flush, Without engraving
Additional actuator information
Metal guard
Complementary
Bezel material
Metal
Mounting diameter
30 mm
Signaling unit head shape
Octagonal
Contact type and composition
1 NO + 1 NC
Connections - terminals
Screw terminals 1 x 0.22...2 x 1.5 mm² conforming to IEC 60947-1
Tightening torque
0.8 N.m conforming to IEC 60947-1
Screw head shape
With cross slots
Mechanical durability
5000000 cycles
Operating position
Any position
[Ie] rated operational current
3 A at 240 V, AC-15, A600-Q600 conforming to NEMA
0.55 A at 125 V, DC-13, A600-Q600 conforming to NEMA
[Ui] rated insulation voltage
250 V (pollution degree 3) conforming to IEC 60947-1
[Uimp] rated impulse withstand voltage
2.5 kV IEC 60947-1
Contact material
Silver alloy contacts
Contact operation
Standard
Positive opening
Without
Overload and short-circuit protection
10 A Cartridge fuse type conforming to IEC 60947-5-1
[Ith] conventional free air thermal current
10 A
[Icm] rated short-circuit closing capacity
12 kA at 600 V AC-15, 7200 VA
15 kA at 480 V AC-15, 7200 VA
30 kA at 240 V AC-15, 7200 VA
60 kA at 120 V AC-15, 7200 VA
0.1 kA at 600 V DC-13
0.27 kA at 250 V DC-13
0.55 kA at 125 V DC-13
Rated breaking capacity
3 kA at 240 V AC-15, 720 VA
6 kA at 120 V AC-15, 720 VA
1.2 kA at 600 V AC-15, 720 VA
1.5 kA at 480 V AC-15, 720 VA
0.1 kA at 600 V DC-13
0.27 kA at 250 V DC-13
0.55 kA at 125 V DC-13
ISO n° 1 terminals description
(13-14-11-12) OF
Date 02/06/2023
Weight: 0.132
Measurements: 4x5x9
Locator: B4P3B
