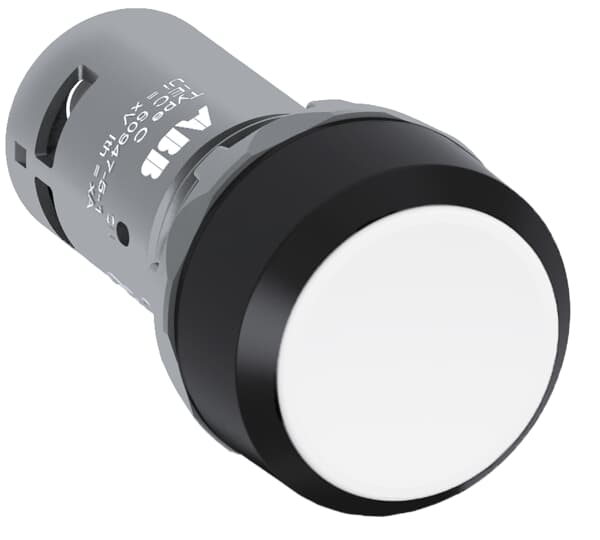

White Button ABB 1SFA619101R1027 CP2-10U-20 30X55mm
19 em estoque- Código
- 7674
- GTIN
- 7898185379157
- Categoria
- Electrical switches
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- Abb
- SKU / Código interno
- 7674
- GTIN
- 7898185379157
- Tipo de produto
- Electrical switches
- Condição
- Condição na ficha
- Estoque
- 19 em estoque
- Brand
- ABB
- Model
- 1SFA619101R1027 CP2-10U-20 30X55mm
- Product Net Width
- 0.03 m
- Product Net Height
- 0.03 m
- Product Net Depth / Length
- 0.055 m
- Product Net Weight
- 0.022 kg
- Ambient Air Temperature
- Operation -25 ... +70 °C
- Color
- Gray
- Actuator Type
- Flush
- Bezel Material
- Black Plastic
- Illumination
- Non-illuminated
- Function
- Maintained
- Degree of Protection
- Front IP66
- NEMA Enclosure Type
- Type 1
- Pollution Degree
- 3
- Rated Frequency (f)
- 50/60 Hz
- Rated Operating Voltage
- Max 300 V AC/DC
- Power Loss
- Max 5 W
- Mechanical Durability
- 0.5 million
- Connecting Capacity
- Flexible with ferrule 1 x 0.5...1.5 mm²
- Connection Type
- Screw Clamp
- Terminal Type
- Screw Terminals
- Tightening Torque
- 0.8 N·m
- Wire Stripping Length
- 6 mm
- Connecting Capacity UL/CSA
- 1x 22...14 AWG
- Date
- 22/07/22
- Weight
- 0.200KG
- Measurements
- 10X10X10
- Locator
- GP04 CL15P05
Sobre o produto
Model: 1SFA619101R1027 CP2-10U-20 30X55mm
Compact Pushbutton - Maintained - Flush - Gray -
Non-illuminated - Black plastic - 2NO
Product Net Width: 0.03 m
Product Net Height: 0.03 m
Product Net Depth / Length: 0.055 m
Product Net Weight: 0.022 kg
Ambient Air Temperature: Operation -25 ... +70 °C
Storage -40 ... +85 °C
Actuator Type: Flush
Bezel Material: Black Plastic
Illumination: Non-illuminated
Function: Maintained
Number of Auxiliary Contacts NC: 0
Number of Auxiliary Contacts NO: 2
Degree of Protection: Front IP66
NEMA Enclosure Type: Type 1
Pollution Degree: 3
Rated Insulation Voltage (U i): 300 V
Rated Impulse Withstand Voltage (U imp): 6 kV
Rated Frequency (f): 50/60 Hz
Rated Operating Voltage: Max 300 V AC/DC
Rated Operating Current DC-13 (I e): (24 V) 0.3 A
Rated Operating Current AC-15 (I e): (240 V) 1 A
Power Loss: Max 5 W
Mechanical Durability: 0.5 million
Connecting Capacity: Flexible with ferrule 1 x 0.5...1.5 mm²
Flexible with ferrule 2 x 0.5...1.5 mm²
Flexible with insulated ferrule 1 x 0.5...1.5 mm²
Flexible with insulated ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5...1.5 mm²
Flexible 2 x 0.5...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Connection Type: Screw Clamp
Terminal Type: Screw Terminals
Tightening Torque: 0.8 N·m
Wire Stripping Length: 6 mm
Technical UL/CSA
Connecting Capacity UL/CSA: 1x 22...14 AWG
Weight: 0.200KG
Measurements: 10X10X10
Locator: GP04 CL15P05
Cabo Eletro Comercial LTDA Thanks you.
5 motivos para comprar na Cabo Eletro
- 01 Reputação comprovada Top seller no Mercado Livre & eBay, com histórico público de vendas.
- 02 Procedência e NF-e Faturamento por CNPJ e nota fiscal eletrônica em toda compra.
- 03 Estoque difícil de achar 12.000+ SKUs, inclusive itens fora de linha e de reposição.
- 04 Despacho rápido Itens em estoque saem em até 1 dia útil após a confirmação.
- 05 Apoio técnico Validamos código e aplicação com você antes da compra.
Vai levar vários itens? Peça um orçamento por e-mail
Envie este e outros códigos/SKUs e receba um orçamento consolidado, com nota fiscal e condições para volume. Atendemos pessoa física, jurídica e compradores internacionais.
White Button ABB 1SFA619101R1027 CP2-10U-20 30X55mm
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
White Button ABB 1SFA619101R1027 CP2-10U-20 30X55mm
New product
Brand: ABB
Model: 1SFA619101R1027 CP2-10U-20 30X55mm
Compact Pushbutton - Maintained - Flush - Gray -
Non-illuminated - Black plastic - 2NO
Dimensions
Product Net Width: 0.03 m
Product Net Height: 0.03 m
Product Net Depth / Length: 0.055 m
Product Net Weight: 0.022 kg
Technical
Ambient Air Temperature: Operation -25 ... +70 °C
Storage -40 ... +85 °C
Color: Gray
Actuator Type: Flush
Bezel Material: Black Plastic
Illumination: Non-illuminated
Function: Maintained
Number of Auxiliary Contacts NC: 0
Number of Auxiliary Contacts NO: 2
Degree of Protection: Front IP66
Front IP67
Front IP69K
Terminals IP20
NEMA Enclosure Type: Type 1
Type 12
Type 13
Type 3R
Type 4
Type 4X
Pollution Degree: 3
Rated Insulation Voltage (U i): 300 V
Rated Impulse Withstand Voltage (U imp): 6 kV
Rated Frequency (f): 50/60 Hz
Rated Operating Voltage: Max 300 V AC/DC
Rated Operating Current DC-13 (I e): (24 V) 0.3 A
(125 V) 0.2 A
Rated Operating Current AC-15 (I e): (240 V) 1 A
Power Loss: Max 5 W
Mechanical Durability: 0.5 million
Connecting Capacity: Flexible with ferrule 1 x 0.5...1.5 mm²
Flexible with ferrule 2 x 0.5...1.5 mm²
Flexible with insulated ferrule 1 x 0.5...1.5 mm²
Flexible with insulated ferrule 2 x 0.5...1.5 mm²
Flexible 1 x 0.5...1.5 mm²
Flexible 2 x 0.5...1.5 mm²
Solid 1 x 0.5...1.5 mm²
Solid 2 x 0.5...1.5 mm²
Connection Type: Screw Clamp
Terminal Type: Screw Terminals
Tightening Torque: 0.8 N·m
Wire Stripping Length: 6 mm
Technical UL/CSA
Connecting Capacity UL/CSA: 1x 22...14 AWG
2x 22...14 AWG
Date: 22/07/22
Weight: 0.200KG
Measurements: 10X10X10
Locator: GP04 CL15P05
Cabo Eletro Comercial LTDA Thanks you.
