Phoenix Contact UT 4-MTD-PE 4mm² KIT 50 Borne Terra
Last unit- Code
- WS6978
- GTIN
- 4017918960995
- Category
- Cable connectors and terminals
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Phoenix Contact
- SKU / Internal code
- WS6978
- GTIN
- 4017918960995
- Product type
- Cable connectors and terminals
- Condition
- Condition shown in specs
- Stock
- Last unit
- Brand
- Phoenix Contact
- Model
- UT4-MTD-PE 3046223
- Date
- 09/30/2024
- Weight
- 0.014 kg
- Measurements
- 10X15X24
- Locator
- A23P2C
About this item

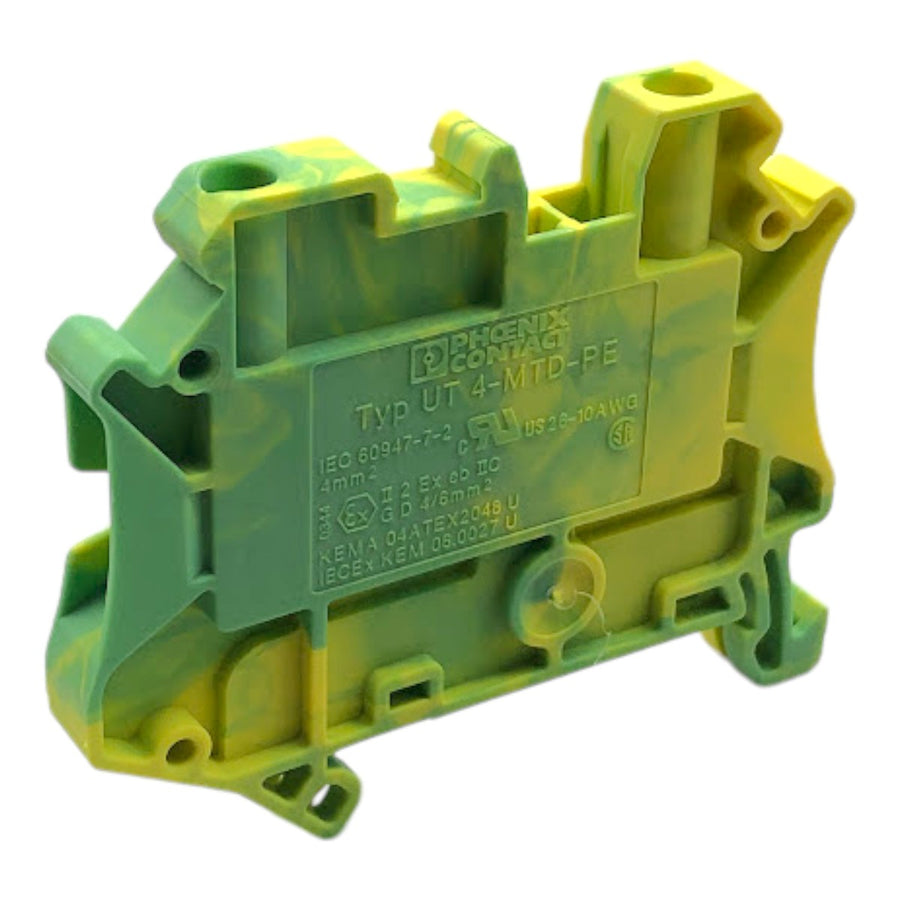

Ground Terminal Block Phoenix Contact UT 4-MTD-PE 4mm² KIT 50
NEW product out of manufacturer's box
Brand: Phoenix Contact
Model: UT4-MTD-PE 3046223
A ground terminal block is a type of connection terminal used in electrical installations to connect conductors to the grounding system. Grounding is essential to ensure safety in electrical circuits by diverting unwanted currents, such as in the event of a fault, to the ground, protecting people and equipment.
The ground terminal block is used to connect grounding wires to a busbar or rail, ensuring that electrical current can be safely conducted to the ground. In situations of overload or failure, it diverts dangerous electricity, preventing shocks and damage.
Ground terminal block, connection type: Screw connection, cross-section: 0.14 mm2 - 6 mm2, mounting: NS 35/7.5, NS 35/15, color: green-yellow
Product type Ground terminal block
Number of connections 2
Number of rows 1
Article revision 14
Insulation properties
Overvoltage category III
Degree of pollution 3
Rated impulse voltage 8 kV
Maximum power dissipation under nominal condition 1.02 W
Protective conductor foot Yes
Number of connections per level 2
Nominal cross-section 4 mm²
Torque range 0.6 Nm ... 0.8 Nm
Nominal cross-section 4 mm²
Nominal AWG cross-section 12
Date: 09/30/2024
Weight: 0.014Kg
Measurements: 10X15X24
Locator: A23P2C
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment is exclusively the buyer's.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Ground Terminal Block Phoenix Contact UT 4-MTD-PE 4mm² KIT 50
NEW product out of manufacturer's box
Brand: Phoenix Contact
Model: UT4-MTD-PE 3046223
A ground terminal block is a type of connection terminal used in electrical installations to connect conductors to the grounding system. Grounding is essential to ensure safety in electrical circuits by diverting unwanted currents, such as in the event of a fault, to the ground, protecting people and equipment.
Main function:
The ground terminal block is used to connect grounding wires to a busbar or rail, ensuring that electrical current can be safely conducted to the ground. In situations of overload or failure, it diverts dangerous electricity, preventing shocks and damage.
Ground terminal block, connection type: Screw connection, cross-section: 0.14 mm2 - 6 mm2, mounting: NS 35/7.5, NS 35/15, color: green-yellow
Product type Ground terminal block
Number of connections 2
Number of rows 1
Data update status
Article revision 14
Insulation properties
Overvoltage category III
Degree of pollution 3
Rated impulse voltage 8 kV
Maximum power dissipation under nominal condition 1.02 W
Protective conductor foot Yes
Number of connections per level 2
Nominal cross-section 4 mm²
Torque range 0.6 Nm ... 0.8 Nm
Nominal cross-section 4 mm²
Nominal AWG cross-section 12
Date: 09/30/2024
Weight: 0.014Kg
Measurements: 10X15X24
Locator: A23P2C
