Phoenix Contact Disconnect Terminal Block UT 4-MTL (-P/P) KIT 10
14 in stock- Code
- WS5104
- GTIN
- 4055626063430
- Category
- Born
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Phoenix Contact
- SKU / Internal code
- WS5104
- GTIN
- 4055626063430
- Product type
- Born
- Condition
- Condition shown in specs
- Stock
- 14 in stock
- Weight
- 0,012 kg
- Dimensions
- 10x15x24
About this item

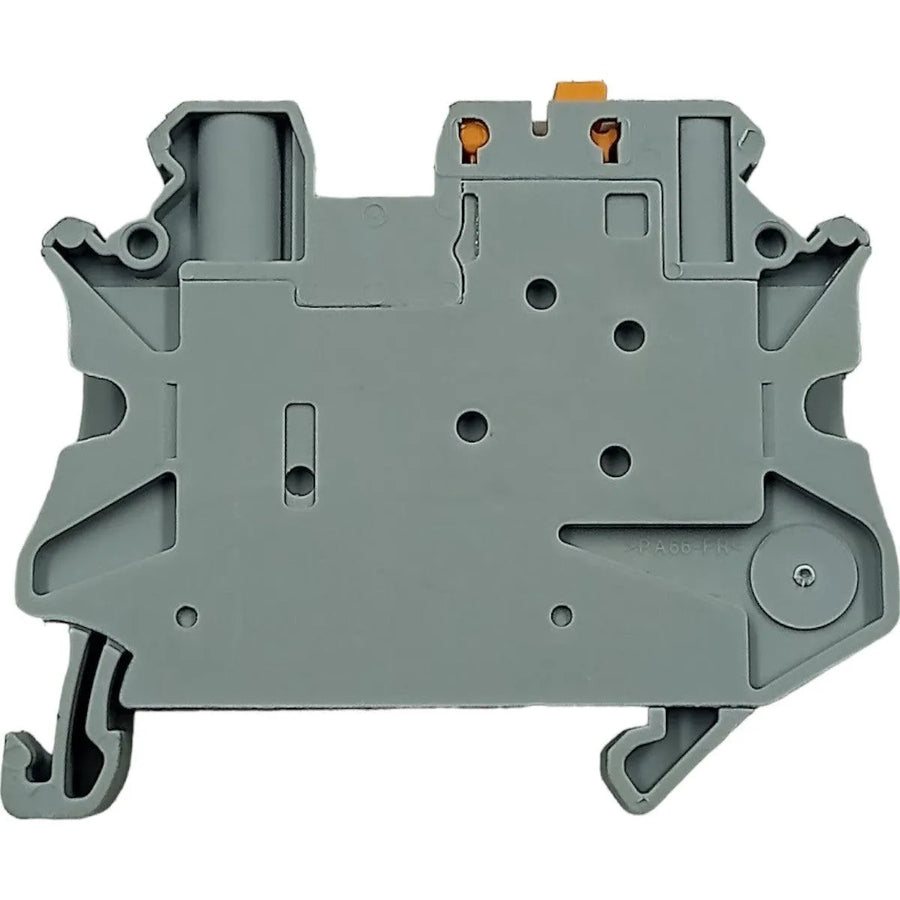

Phoenix Contact UT 4-MTL (-P/P) KIT 10 Disconnect Terminal Block
NEW product out of manufacturer's box
Brand: Phoenix Contact
Model: UT 4-MTL (-P/P) 3046146
A disconnect terminal block is a special type of feed-through terminal block that allows easy and safe disconnection of electrical circuits for maintenance, testing, or isolation purposes. They are widely used in control panels and distribution boards to facilitate the management and operation of complex electrical systems.
Disconnect terminal block, with operating tab and test socket screws for accommodating test plugs, nominal voltage: 500 V, nominal current: 20 A, connection type: Screw connection, conductor cross-section: 2.5 mm2, conductor cross-section: 0.14 mm2 - 6 mm2, mounting: NS 35/7.5, NS 35/15, color: gray
Product type Disconnect terminal
Area of application Machine building
Plant construction
Number of connections 2
Number of rows 1
Insulation properties
Overvoltage category III
Pollution degree 3
Rated impulse withstand voltage 6 kV
Maximum power dissipation with nominal condition 1.02 W
Number of connections per level 2
Nominal cross-section 4 mm²
Level 1 above 1 below 1
Tightening torque 0.6 ... 0.8 Nm
Insulation strip length 9 mm
Nominal current 20 A
Maximum load current 20 A (with 6 mm² conductor cross-section)
Nominal voltage 500 V
Nominal cross-section 2.5 mm²
Date: 06/13/2024
Weight: 0.012KG
Measurements: 10x15x24
Locator: A10P3B
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may be applied. If the operation is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Phoenix Contact UT 4-MTL (-P/P) KIT 10 Disconnect Terminal Block
NEW product out of manufacturer's box
Brand: Phoenix Contact
Model: UT 4-MTL (-P/P) 3046146
A disconnect terminal block is a special type of feed-through terminal block that allows easy and safe disconnection of electrical circuits for maintenance, testing, or isolation purposes. They are widely used in control panels and distribution boards to facilitate the management and operation of complex electrical systems.
Disconnect terminal block, with operating tab and test socket screws for accommodating test plugs, nominal voltage: 500 V, nominal current: 20 A, connection type: Screw connection, conductor cross-section: 2.5 mm2, conductor cross-section: 0.14 mm2 - 6 mm2, mounting: NS 35/7.5, NS 35/15, color: gray
Product type Disconnect terminal
Area of application Machine building
Plant construction
Number of connections 2
Number of rows 1
Potentials 1
Insulation properties
Overvoltage category III
Pollution degree 3
Rated impulse withstand voltage 6 kV
Maximum power dissipation with nominal condition 1.02 W
Number of connections per level 2
Nominal cross-section 4 mm²
Level 1 above 1 below 1
Thread M3
Tightening torque 0.6 ... 0.8 Nm
Insulation strip length 9 mm
Gauge pin A4
Nominal current 20 A
Maximum load current 20 A (with 6 mm² conductor cross-section)
Nominal voltage 500 V
Nominal cross-section 2.5 mm²
Date: 06/13/2024
Weight: 0.012KG
Measurements: 10x15x24
Locator: A10P3B
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may be applied. If the operation is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial LTDA thanks you.
