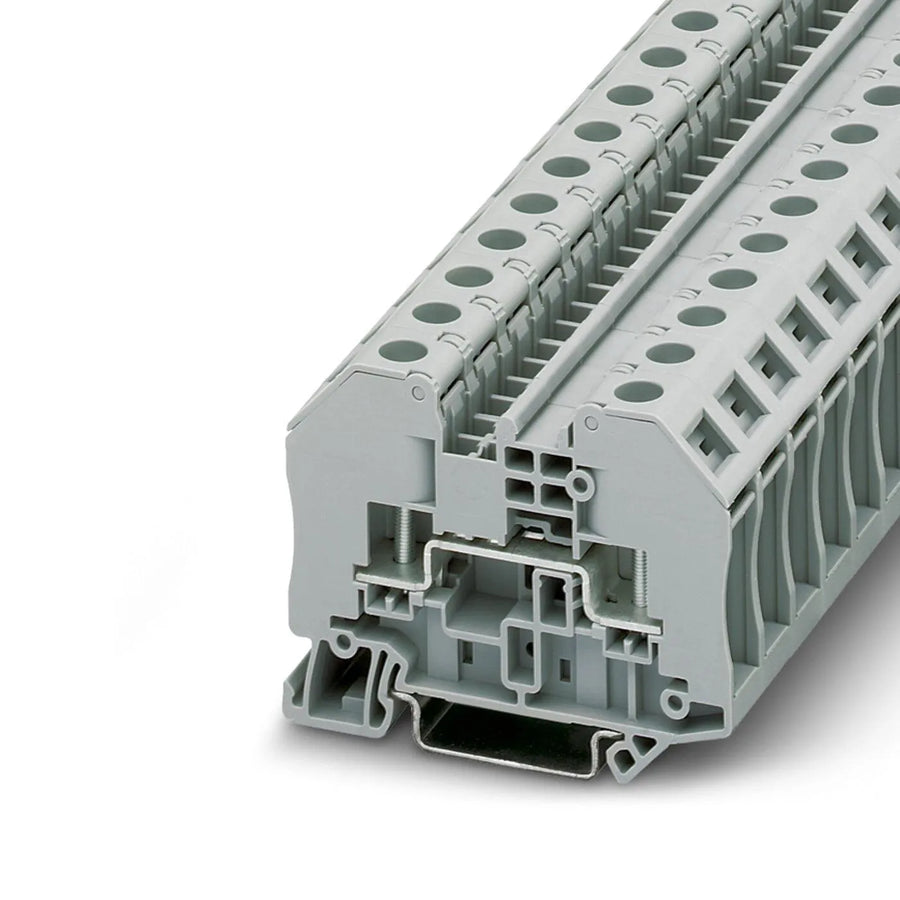

Phoenix Contact RT 3 3049013 1000V 24A Terminal Block
978 em estoque- Código
- WS1552
- GTIN
- 4046356140140
- Categoria
- Born
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- Phoenix Contact
- SKU / Código interno
- WS1552
- GTIN
- 4046356140140
- Tipo de produto
- Born
- Condição
- Condição na ficha
- Estoque
- 978 em estoque
- Brand
- Phoenix Contact
- Model
- RT 3 3049013
- General Important
- In the case of uninsulated cable lugs, it is necessary to apply the BE-RT... line extension (see accessories)!
- Date
- 08/23/2023
- Weight
- 0.025g
- Measurements
- 7x5x1
- Locator
- B3P4B
Sobre o produto
Phoenix Contact RT 3 3049013 1000v 24A Ring Lug Terminal Block
New product in manufacturer's box
Brand: Phoenix Contact
Model: RT 3 3049013
RT 3 - Ring lug terminal block
Ring lug terminal block, rated voltage: 1000 V, rated current: 24 A, number of connections: 2, connection type: Ring lug connection, 1st level, cross-section: 2.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
General Important: In the case of uninsulated cable lugs, it is necessary to apply the BE-RT... line extension (see accessories)!
Note The rated insulation voltage is valid for insulated cable lugs according to DIN 46237:1970-07 and for uninsulated cable lugs according to DIN 46234:1980-03 with extended clearance.
Product type Ring lug terminal block
Application area Railway industry
Machine building
Plant construction
Processing industry
Number of connections 2
Number of lines 1
Insulation properties
Overvoltage category III
Pollution degree 3
Rated impulse voltage 8 kV
Maximum power dissipation with nominal condition 0.77 W
Number of connections per level 2
Nominal cross-section 2.5 mm²
Nominal AWG cross-section 14
Stripping length The stripping length depends on the cable lug manufacturer's indication.
Connection according to standard IEC 60947-7-1
Rated current 24 A
Maximum load current 24 A (with conductor cross-section of 2.5 mm²)
Rated voltage 1000 V (Rated voltage in case of open disconnection point 500 V)
Nominal cross-section 2.5 mm²
Date: 08/23/2023
Measurements: 7x5x1
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment is exclusively the buyer's.
Cabo Eletro Comercial ltda thanks you
5 motivos para comprar na Cabo Eletro
- 01 Reputação comprovada Top seller no Mercado Livre & eBay, com histórico público de vendas.
- 02 Procedência e NF-e Faturamento por CNPJ e nota fiscal eletrônica em toda compra.
- 03 Estoque difícil de achar 12.000+ SKUs, inclusive itens fora de linha e de reposição.
- 04 Despacho rápido Itens em estoque saem em até 1 dia útil após a confirmação.
- 05 Apoio técnico Validamos código e aplicação com você antes da compra.
Vai levar vários itens? Peça um orçamento por e-mail
Envie este e outros códigos/SKUs e receba um orçamento consolidado, com nota fiscal e condições para volume. Atendemos pessoa física, jurídica e compradores internacionais.
Phoenix Contact RT 3 3049013 1000V 24A Terminal Block
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Phoenix Contact RT 3 3049013 1000v 24A Ring Lug Terminal Block
New product in manufacturer's box
Brand: Phoenix Contact
Model: RT 3 3049013
RT 3 - Ring lug terminal block
Ring lug terminal block, rated voltage: 1000 V, rated current: 24 A, number of connections: 2, connection type: Ring lug connection, 1st level, cross-section: 2.5 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
General Important: In the case of uninsulated cable lugs, it is necessary to apply the BE-RT... line extension (see accessories)!
General
Note The rated insulation voltage is valid for insulated cable lugs according to DIN 46237:1970-07 and for uninsulated cable lugs according to DIN 46234:1980-03 with extended clearance.
Product type Ring lug terminal block
Application area Railway industry
Machine building
Plant construction
Processing industry
Number of connections 2
Number of lines 1
Potentials 1
Insulation properties
Overvoltage category III
Pollution degree 3
Rated impulse voltage 8 kV
Maximum power dissipation with nominal condition 0.77 W
Number of connections per level 2
Nominal cross-section 2.5 mm²
Nominal AWG cross-section 14
1st level
Stripping length The stripping length depends on the cable lug manufacturer's indication.
Connection according to standard IEC 60947-7-1
Rated current 24 A
Maximum load current 24 A (with conductor cross-section of 2.5 mm²)
Rated voltage 1000 V (Rated voltage in case of open disconnection point 500 V)
Nominal cross-section 2.5 mm²
Date: 08/23/2023
Weight: 0.025g
Measurements: 7x5x1
Locator: B3P4B
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the operation is subject to this tax, the responsibility for payment is exclusively the buyer's.
Cabo Eletro Comercial ltda thanks you
