Sobre o produto

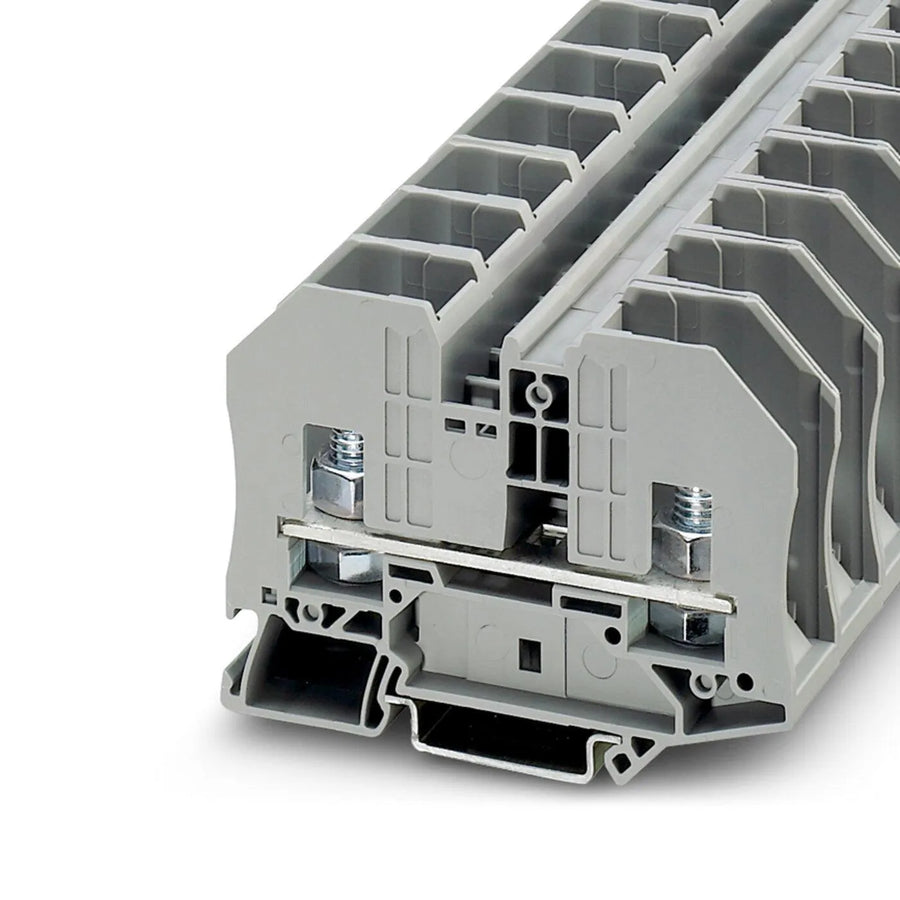

Phoenix Contact RTO 8 3049343 1000v Ring Terminal Block
New product in manufacturer's box
Brand: Phoenix Contact
Model: RTO 8 3049343
Ring terminal block, Important: for non-insulated cable lugs, the BE-RT... extension must be used (see accessories)!, nominal voltage: 1000 V, nominal current: 125 A, connection type: Ring lug connection, Cross-section: 35 mm2, mounting type: NS 35/7.5, NS 35/15, color: gray.
Rated impulse voltage 8 kV
Maximum power dissipation with nominal condition 4.06 W
Number of connections per level 2
Nominal cross-section 35 mm²
Level 1 above 1 below 1
Stripping length The stripping length depends on the cable lug manufacturer's specifications.
Connection according to standard IEC 60947-7-1
Nominal current 125 A
Maximum load current 125 A (with 35 mm² conductor cross-section)
Nominal voltage 1000 V
Nominal cross-section 35 mm²
Cable lug connection DIN 46234:1980-03
Connection according to standard DIN 46234:1980-03
Connection profile 2.5 mm² ... 35 mm²
AWG cross-section range (converted according to IEC)
Measurements: 12x9x6
Locator: S1CL6P2
