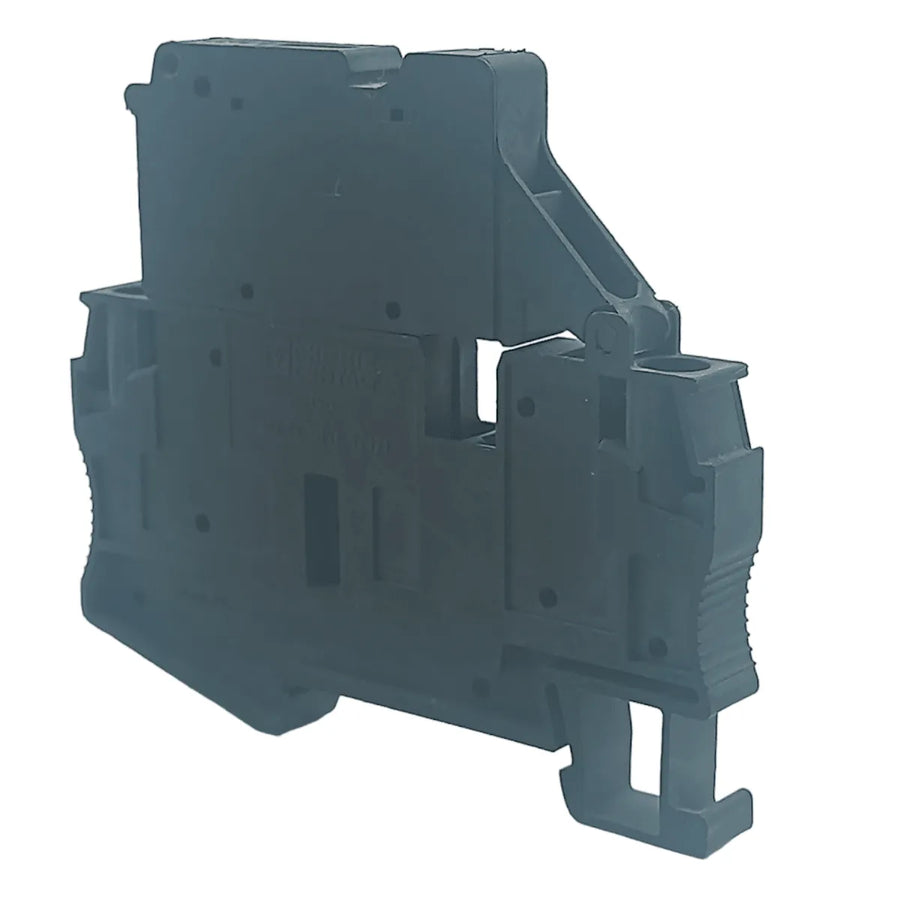

Phoenix Contact ST4-HESI Fuse Terminal Block 300V 6.3A
64 em estoque- Código
- 1571
- GTIN
- 4017918890476
- Categoria
- Born
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- Phoenix Contact
- SKU / Código interno
- 1571
- GTIN
- 4017918890476
- Tipo de produto
- Born
- Condição
- Condição na ficha
- Estoque
- 64 em estoque
- Brand
- Phoenix Contact
- Model
- ST4-HESI
- Date
- 01/06/2021
- Weight
- 0.015G
- Measurements
- 7x6x2
- Locator
- GP4CL25P5
Sobre o produto
Phoenix Contact ST4-HESI Fuse Terminal Blocks 300V 6.3A
New product out of box
Brand: Phoenix Contact
Model: ST4-HESI
Fuse terminal blocks - ST 4-HESI (6.3X32)
Lever fuse terminal block, black, for 6.3 x 32 mm G-fuse
Fuse type Glass/ceramic/...
Rated impulse voltage 6 kV
Maximum power dissipation under nominal conditions 1.02 W
Fuse G / 6.3 x 32
Maximum current with individual arrangement 10 A
Maximum power dissipation max. 1.6 W (with fuse terminal block coupling in case of overload)
max. 1.6 W (with coupling of several fuse terminal blocks in case of overload)
max. 4 W (with individual coupling of the fuse terminal block in case of short circuit)
max. 2.5 W (with coupling with several fuse terminal blocks in case of short circuit)
Number of connections per level 2
Nominal cross-section 4 mm²
Stripping length 8 mm ... 10 mm
Connection according to standard IEC 60947-7-3
Conductor cross-section, solid 0.08 mm² ... 6 mm²
Conductor cross-section AWG 28 ... 10 (converted according to IEC)
Flexible conductor cross-section 0.08 mm² ... 4 mm²
Flexible conductor cross-section [AWG] 28 ... 12 (converted according to IEC)
Flexible conductor cross-section (ferrule without plastic sleeve) 0.14 mm² ... 4 mm²
Flexible conductor cross-section (ferrule with plastic sleeve) 0.14 mm² ... 4 mm²
2 conductors of the same flexible cross-section with TWIN ferrule with plastic sleeve 0.5 mm² ... 1 mm²
Rated current 10 A
Maximum load current 10 A (Current is determined by the installed fuse.)
Rated voltage 400 V
Nominal cross-section 1.5 mm²
Date: 01/06/2021
Measurements: 7x6x2
Locator: GP4CL25P5
