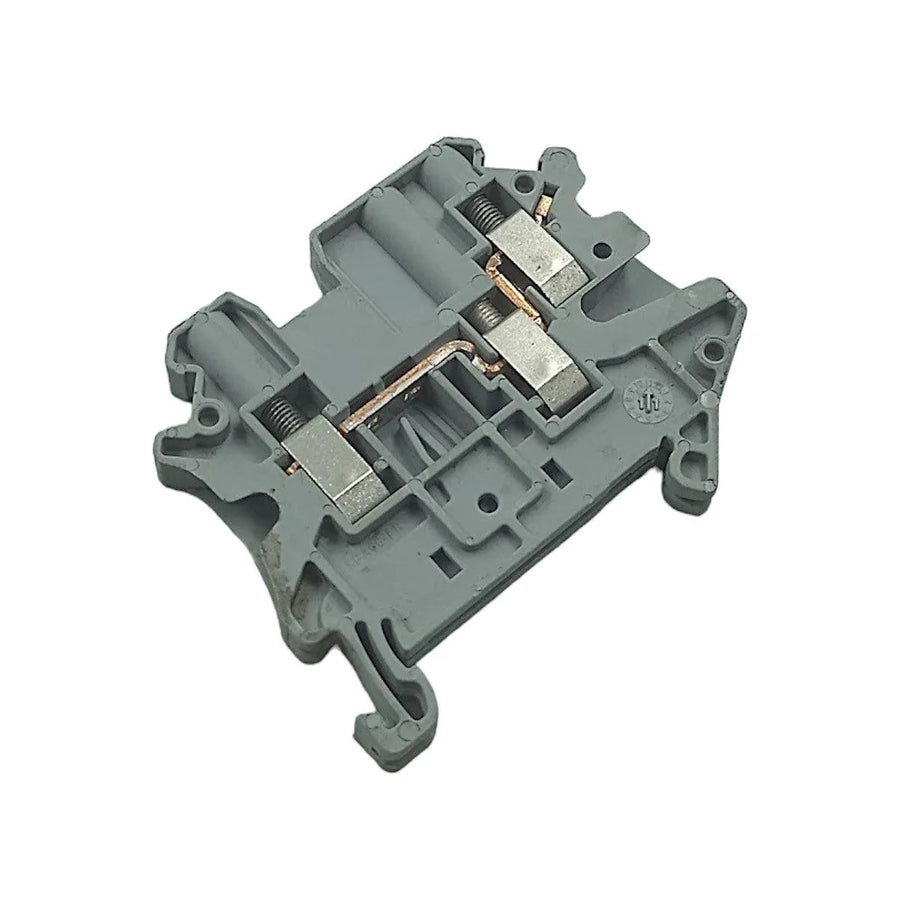

Phoenix Contact UT 4-TWIN Feed-Through Terminal Block 4mm² 500v 30A
21 em estoque- Código
- WS4028
- GTIN
- 7899624046296
- Categoria
- Born
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- Phoenix Contact
- SKU / Código interno
- WS4028
- GTIN
- 7899624046296
- Tipo de produto
- Born
- Condição
- Condição na ficha
- Estoque
- 21 em estoque
- Brand
- Phoenix Contact
- Model
- UT 4-TWIN 3044364
- Rated impulse voltage
- 6 kV
- Nominal cross-section
- 4 mm²
- Rated voltage
- 500 V
- Date
- 10/04/2024
- Weight
- 0.050
- Measurements
- 10x15x24
- Locator
- A1P2A
Sobre o produto
Phoenix Contact UT 4-TWIN 4mm² 500v 32A Feed-Through Terminal Block
New product out of manufacturer's box
Brand: Phoenix Contact
Model: UT 4-TWIN 3044364
A feed-through terminal block, also known as a pass-through connection terminal, is a type of terminal block used in electrical systems to allow the connection of multiple wires at a single input and output point. It has a configuration that allows a wire to be connected through the block and continue its path without interruption, while other wires can be connected to the same point.
Feed-through terminal blocks typically have a structure that allows wire connections via screws or pressure, depending on the specific type of block. They come in different sizes and configurations to meet the needs of various electrical applications and can be mounted on DIN rails or mounting surfaces.
Feed-through terminal block, rated voltage: 500 V, rated current: 32 A, number of connections: 3, connection method: Screw connection, cross-section: 4 mm2, connection profile: 0.14 mm2 - 6 mm2, mounting type: NS 35/7.5, NS 35/15, color: gray
Rated impulse voltage: 6 kV
Maximum power dissipation under nominal conditions: 1.02 W
Number of connections per level: 3
Nominal cross-section: 4 mm²
Rated voltage: 500 V
Date: 10/04/2024
Measurements: 10x15x24
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may be applied.
If the operation is subject to this tax, the responsibility for payment lies exclusively with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 motivos para comprar na Cabo Eletro
- 01 Reputação comprovada Top seller no Mercado Livre & eBay, com histórico público de vendas.
- 02 Procedência e NF-e Faturamento por CNPJ e nota fiscal eletrônica em toda compra.
- 03 Estoque difícil de achar 12.000+ SKUs, inclusive itens fora de linha e de reposição.
- 04 Despacho rápido Itens em estoque saem em até 1 dia útil após a confirmação.
- 05 Apoio técnico Validamos código e aplicação com você antes da compra.
Vai levar vários itens? Peça um orçamento por e-mail
Envie este e outros códigos/SKUs e receba um orçamento consolidado, com nota fiscal e condições para volume. Atendemos pessoa física, jurídica e compradores internacionais.
Phoenix Contact UT 4-TWIN Feed-Through Terminal Block 4mm² 500v 30A
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Phoenix Contact UT 4-TWIN 4mm² 500v 32A Feed-Through Terminal Block
New product out of manufacturer's box
Brand: Phoenix Contact
Model: UT 4-TWIN 3044364
A feed-through terminal block, also known as a pass-through connection terminal, is a type of terminal block used in electrical systems to allow the connection of multiple wires at a single input and output point. It has a configuration that allows a wire to be connected through the block and continue its path without interruption, while other wires can be connected to the same point.
Feed-through terminal blocks typically have a structure that allows wire connections via screws or pressure, depending on the specific type of block. They come in different sizes and configurations to meet the needs of various electrical applications and can be mounted on DIN rails or mounting surfaces.
Feed-through terminal block, rated voltage: 500 V, rated current: 32 A, number of connections: 3, connection method: Screw connection, cross-section: 4 mm2, connection profile: 0.14 mm2 - 6 mm2, mounting type: NS 35/7.5, NS 35/15, color: gray
Rated impulse voltage: 6 kV
Maximum power dissipation under nominal conditions: 1.02 W
Number of connections per level: 3
Nominal cross-section: 4 mm²
Rated voltage: 500 V
Date: 10/04/2024
Weight: 0.050
Measurements: 10x15x24
Locator: A1P2A
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may be applied.
If the operation is subject to this tax, the responsibility for payment lies exclusively with the buyer.
Cabo Eletro Comercial LTDA thanks you.
