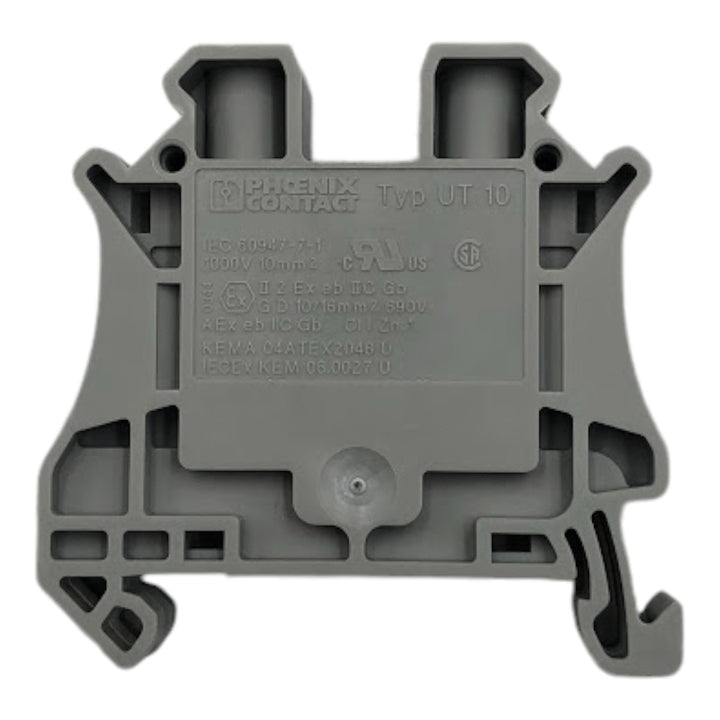

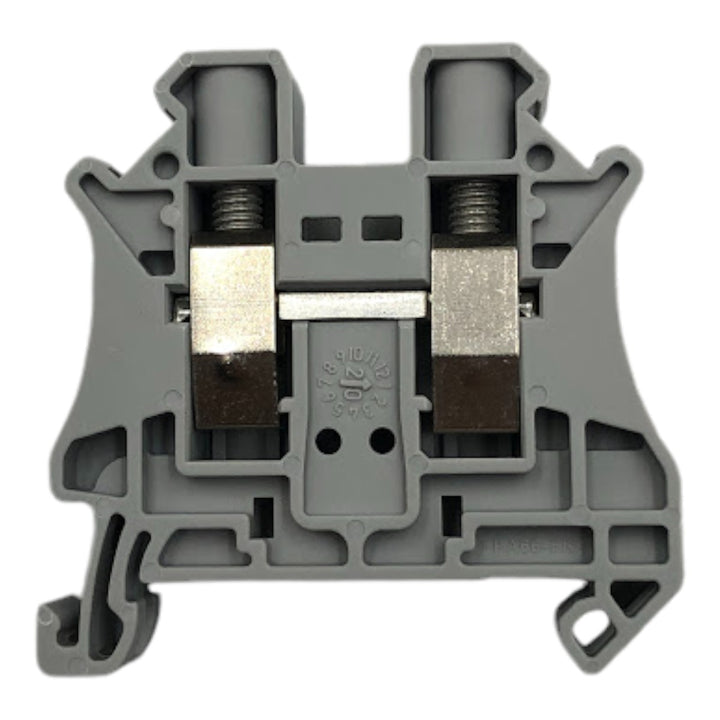

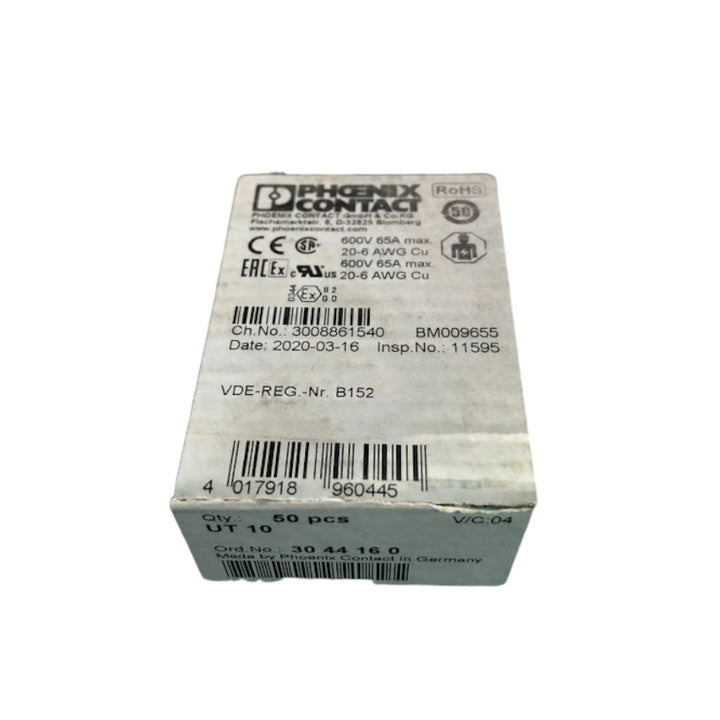

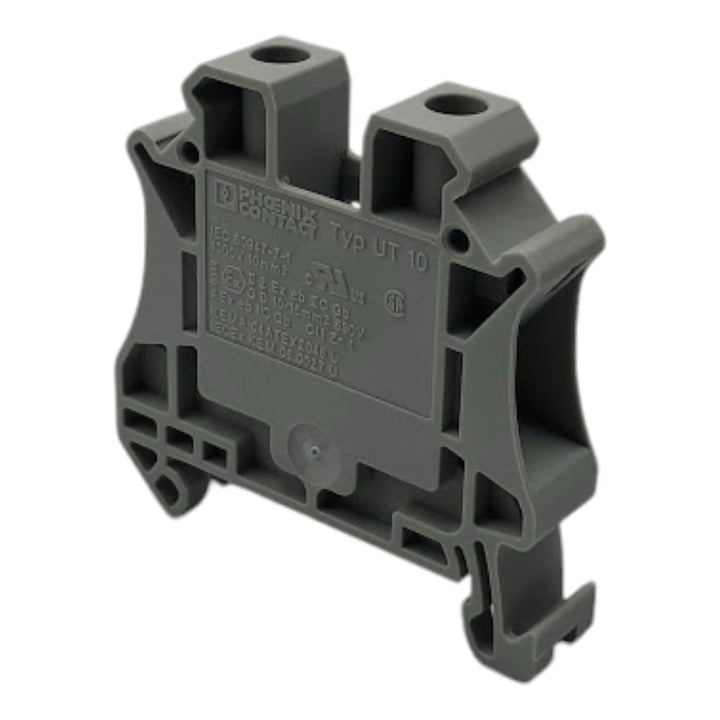

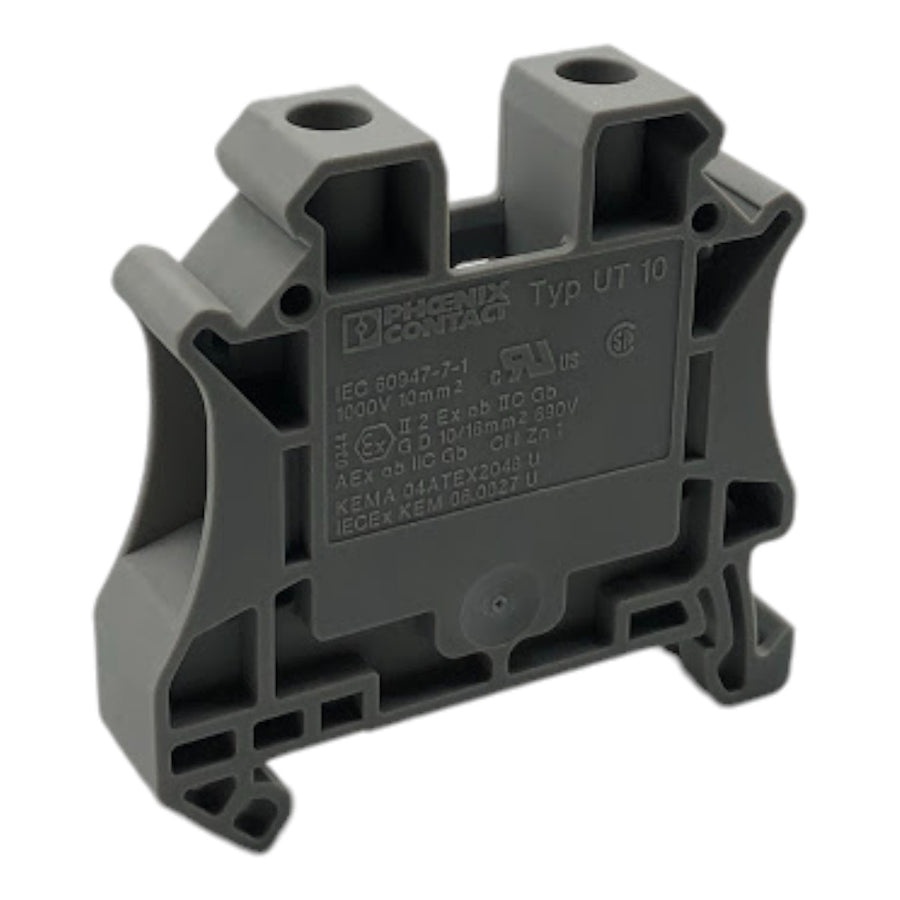

Phoenix Contact UT 10 Feed-Through Terminal Block 3044160 KIT 10
17 em estoque- Código
- WS7037
- GTIN
- 7897801173414
- Categoria
- Cable connectors and terminals
- Despacho
- Em até 1 dia útil para itens em estoque.
- Top seller no Mercado Livre & eBay
- NF-e e faturamento por CNPJ
- Despacho em até 1 dia útil
- Pagamento seguro (Pix, boleto, cartão)
Escolha o tipo de cadastro — abrimos o formulário com os dados deste produto já preenchidos.
Dados principais do item
- Marca
- Phoenix Contact
- SKU / Código interno
- WS7037
- GTIN
- 7897801173414
- Tipo de produto
- Cable connectors and terminals
- Condição
- Condição na ficha
- Estoque
- 17 em estoque
- Brand
- Phoenix Contact
- Model
- UT 10 3044160 1000V 10MM²
- Product type
- Feed-through terminal
- Product family
- UT
- Application area
- Railway industry
- Number of connections
- 2
- Number of rows
- 1
- Potentials
- 1
- Article revision
- 13
- Overvoltage category
- III
- Degree of pollution
- 3
- Nominal cross-section
- 10 mm²
- Floor
- 1 top 1 bottom 1
- Thread
- M4
- Tightening torque
- 1.5 ... 1.8 Nm
- Insulation stripping length
- 10 mm
- Go-gauge
- A6
- Nominal current
- 57 A
- Maximum load current
- 76 A (with 16 mm² conductor cross-section)
- Nominal voltage
- 1000 V
- Date
- 02/10/2024
- Weight
- 0.016Kg
- Measurements
- 10X15X24
- Locator
- A18P2D
Sobre o produto
Phoenix Contact UT 10 3044160 KIT 10 Feed-through Terminal Block
NEW product out of manufacturer's box
Brand: Phoenix Contact
Model: UT 10 3044160 1000V 10MM²
A feed-through terminal block (also called a pass-through terminal block) is a component used in electrical distribution systems and industrial control panels. It serves as a connection point between two wires or cables, allowing electrical current to pass from one side to the other, safely and in an organized manner. This type of terminal block is very common in distribution boards and industrial automation, where circuit organization and safety are crucial.
Feed-through terminal block, nominal voltage: 1000 V, nominal current: 57 A, number of connections: 2, connection type: Screw connection, Gauge: 10 mm2, connection profile: 0.5 mm2 - 16 mm2, mounting type: NS 35/7.5, NS 35/15, color: gray
Product type: Feed-through terminal
Product family: UT
Application area: Railway industry
Machine construction
Plant construction
Processing industry
Number of connections: 2
Number of rows: 1
Article revision: 13
Insulation properties
Overvoltage category: III
Degree of pollution: 3
Rated impulse withstand voltage: 8 kV
Maximum power dissipation under nominal conditions: 1.82 W
Number of connections per level: 2
Nominal cross-section: 10 mm²
Floor: 1 top 1 bottom 1
Tightening torque: 1.5 ... 1.8 Nm
Insulation stripping length: 10 mm
Nominal current: 57 A
Maximum load current: 76 A (with 16 mm² conductor cross-section)
Nominal voltage: 1000 V
Date: 02/10/2024
Weight: 0.016Kg
Measurements: 10X15X24
Locator: A18P2D
