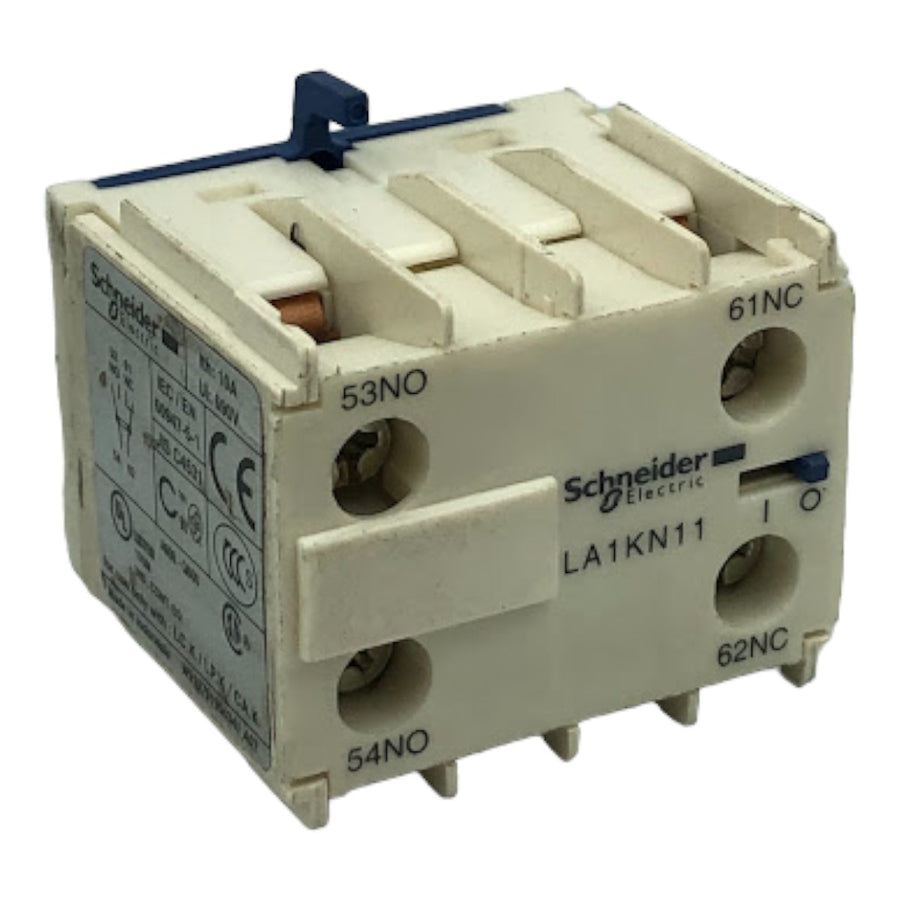

Schneider Auxiliary Contact Block LA1KN11 1NO+1NC 10A 690V
10 in stock- Code
- WS6479
- GTIN
- 7897057075494
- Category
- Electric switches
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- SCHNEIDER
- SKU / Internal code
- WS6479
- GTIN
- 7897057075494
- Product type
- Electric switches
- Condition
- Condition shown in specs
- Stock
- 10 in stock
- Brand
- SCHNEIDER
- Model
- LA1KN11
- Monitoring
- In many applications, the auxiliary contact block is used to provide information about the state of the main device. For example, it can signal whether a contactor is energized or de-energized.
- Control
- It can be used to actuate other devices or control circuits. For example, when a contactor is activated, the auxiliary contacts can be used to turn on an indicator light or trigger an alarm.
- Interlocking
- In systems where two devices cannot operate simultaneously, auxiliary contacts can be used to create an interlocking circuit, ensuring that one device only operates when the other is deactivated.
- Industrial automation
- Used in control panels to indicate the status of contactors and circuit breakers, aiding in the operation and maintenance of automated systems.
- Safety systems
- To trigger alarms or shut down auxiliary circuits when a change of state occurs in main devices, such as circuit breakers.
- Electrical machines
- In equipment where it is necessary to monitor the status of electrical components and ensure that different parts of the system work in a synchronized manner.
- UL 60335-2-40
- Annex JJ
- Date
- 04/09/2024
- Weight
- 0.032 kg
- Measurements
- 10x15x24
- Locator
- A19P3C
About this item
Auxiliary Contact Block Schneider LA1KN11 1NO+1NC 10A 690v
NEW product out of manufacturer's box
Brand: SCHNEIDER
An auxiliary contact block is an electrical device that is mounted in conjunction with other control devices, such as contactors, circuit breakers, or relays, to provide additional contacts that can be used for signaling, control, or interlocking purposes in an electrical system. These auxiliary contacts do not carry the main circuit current but provide information about the state of the main device or allow the main device to be controlled in different ways.
Monitoring: In many applications, the auxiliary contact block is used to provide information about the state of the main device. For example, it can signal whether a contactor is energized or de-energized.
Control: It can be used to actuate other devices or control circuits. For example, when a contactor is activated, the auxiliary contacts can be used to turn on an indicator light or trigger an alarm.
Interlocking: In systems where two devices cannot operate simultaneously, auxiliary contacts can be used to create an interlocking circuit, ensuring that one device only operates when the other is deactivated.
Common applications:
Industrial automation: Used in control panels to indicate the status of contactors and circuit breakers, aiding in the operation and maintenance of automated systems.
Safety systems: To trigger alarms or shut down auxiliary circuits when a change of state occurs in main devices, such as circuit breakers.
Electrical machines: In equipment where it is necessary to monitor the status of electrical components and ensure that different parts of the system work in a synchronized manner.
INSTANTANEOUS AUXILIARY CONTACT 1NO+1NC CONTACTOR TESYS K LA1KN11
TeSys K instantaneous auxiliary contact block, for LC.K, LP.K, CA.K contactors with screw clamp terminals. Provides 1NO+1NC contacts rated up to 10A 690V AC, connection by screw clamp terminals. Front mounting by clip-on, provides high reliability and durability. Multi-standard certification (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).
Product or component type
Auxiliary contact block
Device short name
Range compatibility
Mounting location
Poles contact composition
Contacts operation
[Ue] rated operational voltage
690 V AC 25...400 Hz
[Ui] rated insulation voltage
690 V conforming to IEC 60947-5-1
600 V conforming to UL 60947-5-1
600 V conforming to CSA C22.2 No 60947-5-1
[Ith] conventional free air thermal current
10 A (at 50 °C)
EN/IEC 60947-5-1
CSA C22.2 No 60947-5-1
UL 60335-2-40:Annex JJ
Product certifications
Date: 04/09/2024
Weight: 0.032kg
Measurements: 10x15x24
Locator: A19P3C
Dear customers, if the material is intended for resale, the ST (Substituição Tributária) value may be incurred. If the operation is subject to this tax, the payment responsibility is exclusively the buyer's.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
Auxiliary Contact Block Schneider LA1KN11 1NO+1NC 10A 690v
NEW product out of manufacturer's box
Brand: SCHNEIDER
Model: LA1KN11
An auxiliary contact block is an electrical device that is mounted in conjunction with other control devices, such as contactors, circuit breakers, or relays, to provide additional contacts that can be used for signaling, control, or interlocking purposes in an electrical system. These auxiliary contacts do not carry the main circuit current but provide information about the state of the main device or allow the main device to be controlled in different ways.
Functionality:
Monitoring: In many applications, the auxiliary contact block is used to provide information about the state of the main device. For example, it can signal whether a contactor is energized or de-energized.
Control: It can be used to actuate other devices or control circuits. For example, when a contactor is activated, the auxiliary contacts can be used to turn on an indicator light or trigger an alarm.
Interlocking: In systems where two devices cannot operate simultaneously, auxiliary contacts can be used to create an interlocking circuit, ensuring that one device only operates when the other is deactivated.
Common applications:
Industrial automation: Used in control panels to indicate the status of contactors and circuit breakers, aiding in the operation and maintenance of automated systems.
Safety systems: To trigger alarms or shut down auxiliary circuits when a change of state occurs in main devices, such as circuit breakers.
Electrical machines: In equipment where it is necessary to monitor the status of electrical components and ensure that different parts of the system work in a synchronized manner.
INSTANTANEOUS AUXILIARY CONTACT 1NO+1NC CONTACTOR TESYS K LA1KN11
TeSys K instantaneous auxiliary contact block, for LC.K, LP.K, CA.K contactors with screw clamp terminals. Provides 1NO+1NC contacts rated up to 10A 690V AC, connection by screw clamp terminals. Front mounting by clip-on, provides high reliability and durability. Multi-standard certification (IEC, UL, CSA, CCC), Green Premium compliant (RoHS/REACh).
Main
Range
TeSys
Product name
TeSys K
Product or component type
Auxiliary contact block
Device short name
LA1
Range compatibility
TeSys K LC1K
TeSys K CA2K
TeSys K CA3K
TeSys K CA4K
Mounting location
Front
Poles contact composition
1 NO + 1 NC
Contacts operation
Instantaneous
[Ue] rated operational voltage
690 V AC 25...400 Hz
[Ui] rated insulation voltage
690 V conforming to IEC 60947-5-1
600 V conforming to UL 60947-5-1
600 V conforming to CSA C22.2 No 60947-5-1
[Ith] conventional free air thermal current
10 A (at 50 °C)
Standards
EN/IEC 60947-5-1
UL 60947-5-1
CSA C22.2 No 60947-5-1
GB/T 14048.5
JIS C8201-5-1
UL 60335-2-40:Annex JJ
Product certifications
CB Scheme
CCC
UL
CSA
CE
UKCA
Date: 04/09/2024
Weight: 0.032kg
Measurements: 10x15x24
Locator: A19P3C
