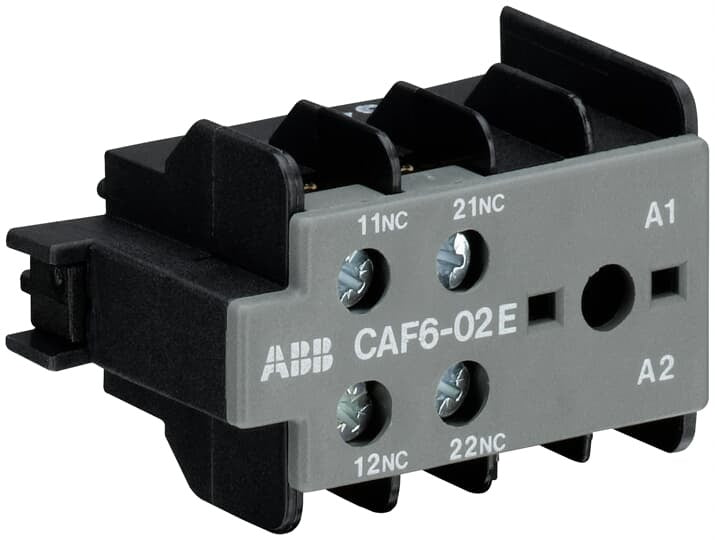

ABB Auxiliary Contact Block CAF6-02E GJL1201330R0010 2NC

ABB Auxiliary Contact Block CAF6-02E GJL1201330R0010 2NC

New product out of manufacturer's box

Brand: ABB

Model: CAF6-02E GJL1201330R0010

Auxiliary Contact Block CAF6-02E

An auxiliary contact block, often referred to as auxiliary contacts, is an electrical component used in switching devices such as relays, contactors, and circuit breakers, to monitor the status of the main device or to perform additional functions such as signaling or control.

Auxiliary contacts typically consist of a set of electrical contacts that operate independently of the main device. They are designed to open or close electrical circuits in response to a change in the status of the main device. This allows auxiliary contacts to be used to signal when the main device is on or off, or to activate other devices or functions in response to system conditions.

In addition to signaling, auxiliary contact blocks are also used to perform interlocking, timing, and control functions in electrical and automation systems. They are an important part of many industrial control and automation systems, ensuring that electrical devices function correctly and safely.

The CAF6-02E is a front-mounted auxiliary contact with 2 auxiliary contacts and screw terminals.

Technical

Rated operating voltage: Auxiliary Circuit 690 V AC

Auxiliary Circuit 250 V DC

Rated frequency (f): Auxiliary Circuit 50 Hz

Auxiliary Circuit 60 Hz

Auxiliary Circuit DC

Rated impulse withstand voltage (Uimp): Auxiliary Circuit 6 kV

Rated insulation voltage (Ui): 690 V

Number of poles: 2

Degree of protection: IP20

Auxiliary circuit connection capacity: Flexible with ferrule 1/2x 1 ... 2.5 mm²

Flexible 1/2x 1 ... 2.5 mm²

Rigid 1/2x 1 ... 4 mm²

Tightening torque: Auxiliary Circuit 0.8 ... 1.1 N·m

Wire stripping length: Auxiliary Circuit 9 mm

Standards: IEC/EN 60947-1

IEC/EN 60947-4-1

IEC/EN 60947-5-1

UL 60947-1

UL 60947-4-1

Number of NO Auxiliary Contacts: 0

Number of NC Auxiliary Contacts: 2

Number of NC Main Contacts: 0

Number of NO Main Contacts: 0

Conventional Free Air Thermal Current (Ith): Auxiliary Circuit 6 A

Product Name: Auxiliary contact

Suitable for: B6-30-01

BC6-30-01

B7-30-01

BC7-30-01 VB6-30-01 VBC6-30-01 VB7-30-01 VBC7-30-01

VB6A -30-01 VBC6A-30-01 VB7A-30-01 VBC7A-30-01

Suitable for Product Class: Mini Contactors

UL/CSA Technical

Max operating voltage UL/CSA: 600 V AC

Auxiliary Circuit Connection Capacity UL/CSA: Stranded 1/2x 22-10 AWG

Tightening torque UL/CSA: Auxiliary Circuit 7 lb·in

UL/CSA contact rating: A600

Date: 10/20/2023

Weight: 0.030

Measurements: 5x3x3

Locator: B12P4A
