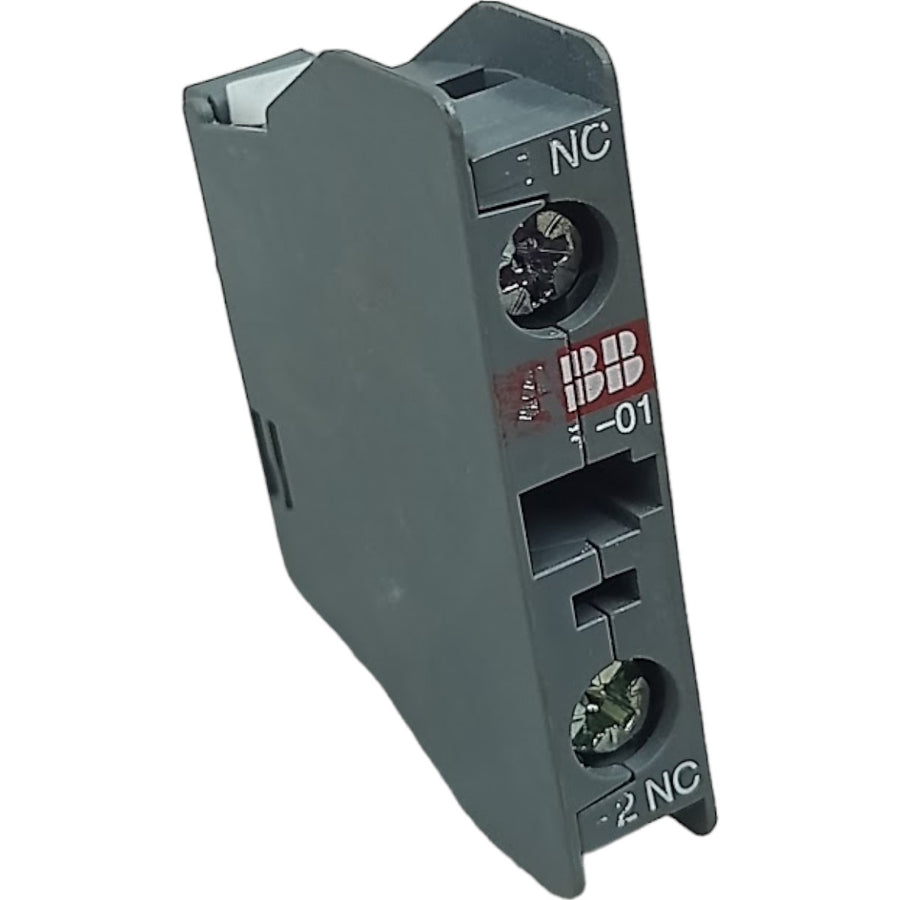

ABB CA5-01 Auxiliary Contact Block 1SBN010010W1001 1NC
Only 3 left- Code
- WS4951
- GTIN
- 3471522121554
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- ABB
- SKU / Internal code
- WS4951
- GTIN
- 3471522121554
- Condition
- Condition shown in specs
- Stock
- Only 3 left
- Weight
- 0,015 kg
- Dimensions
- 10X15X24
About this item
Used product, out of manufacturer's box
Model: CA5-01 1SBN010010W1001
An auxiliary contact block is an electromechanical device used in conjunction with electrical control equipment, such as contactors and relays, to provide additional contacts. These auxiliary contacts are used for various signaling and control functions in electrical circuits.
CA5-01 Auxiliary contact block
CA5-01 is a 1-pole front-mounted auxiliary contact block equipped with screw terminals and can be installed on A series contactors and N series contactor relays. CA5-01 is available with 1 N.C. instantaneous contacts for standard industrial environments.
CA5-01 in W version is available in multi-packs.
Number of Auxiliary Contacts NO:
Number of Auxiliary Contacts NC:
Rated operational voltage:
Auxiliary Circuit 690 V
Rated frequency (f):
Auxiliary Circuit 50/60 Hz
Rated Operational Current AC-15 (Ie):
Short-circuit protective devices:
Auxiliary Circuit - gG Type Fuses 10 A
Rated short-time withstand current (Icw):
for 0.1 s 140 A
Maximum electrical switching frequency:
1200 cycles per hour
Rated operational current DC-13 (Ie):
(48V) 2.8A/134W
(110V) 0.55A/60W
(125V) 0.55A/69W
(220V) 0.30A/66W
Rated insulation voltage (Ui):
acc. to IEC 60947-5-1 690 V
acc. to UL/CSA 600 V
Mechanical durability:
Maximum mechanical switching frequency:
3600 cycles per hour
Degree of protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Screw terminals
Date: 29/05/2024
Weight: 0.015KG
Measurements: 10X15X24
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the transaction is subject to this tax, the responsibility for payment lies solely with the buyer.
Cabo Eletro Comercial LTDA thanks you.
5 reasons to buy from Cabo Eletro
- 01 Proven reputation Top seller on Mercado Livre and eBay, with a public sales history.
- 02 Traceability and invoicing Business invoicing and electronic invoices are available for purchases.
- 03 Hard-to-find inventory 12,000+ SKUs, including discontinued and replacement items.
- 04 Fast dispatch In-stock items ship within 1 business day after confirmation.
- 05 Technical support We help validate the code and application before purchase.
Buying multiple items? Request an email quote
Send this item with other codes or SKUs and receive a consolidated quote with invoice details and volume conditions. We support individual buyers, companies, and international buyers.
Em caso de revenda, entre em contato antecipadamente para consultar valores referentes à Substituição tributária.
Verifique na descrição abaixo o estado do item anunciado. Por lá é indicado se o item é novo, usado e todas as outras informações que o comprador precisa saber antes de realizar a compra.
ABB CA5-01 Auxiliary Contact Block 1SBN010010W1001 1NC
Used product, out of manufacturer's box
Brand: ABB
Model: CA5-01 1SBN010010W1001
An auxiliary contact block is an electromechanical device used in conjunction with electrical control equipment, such as contactors and relays, to provide additional contacts. These auxiliary contacts are used for various signaling and control functions in electrical circuits.
CA5-01 Auxiliary contact block
CA5-01 is a 1-pole front-mounted auxiliary contact block equipped with screw terminals and can be installed on A series contactors and N series contactor relays. CA5-01 is available with 1 N.C. instantaneous contacts for standard industrial environments.
CA5-01 in W version is available in multi-packs.
Technical
Number of Auxiliary Contacts NO:
0
Number of Auxiliary Contacts NC:
1
Rated operational voltage:
Auxiliary Circuit 690 V
Rated frequency (f):
Auxiliary Circuit 50/60 Hz
Rated Operational Current AC-15 (Ie):
(500V) 2A
(690V) 2A
(24/127V) 6A
(220/240V) 4A
(380/400V) 3A
Short-circuit protective devices:
Auxiliary Circuit - gG Type Fuses 10 A
Rated short-time withstand current (Icw):
for 0.1 s 140 A
for 1 s 100 A
Maximum electrical switching frequency:
1200 cycles per hour
Rated operational current DC-13 (Ie):
(24V) 6A/144W
(48V) 2.8A/134W
(72V) 1A/72W
(110V) 0.55A/60W
(125V) 0.55A/69W
(220V) 0.30A/66W
(250V) 0.3/75W
Rated insulation voltage (Ui):
acc. to IEC 60947-5-1 690 V
acc. to UL/CSA 600 V
Mechanical durability:
10 million
3 million
Maximum mechanical switching frequency:
3600 cycles per hour
Degree of protection:
acc. to IEC 60529, IEC 60947-1, EN 60529 Auxiliary Terminals IP20
Terminal type:
Screw terminals
Suitable for:
AF45
AF50
AF63
AF75
AF95B
GAF75
A9
A12
A16
A26
A30
A40
A45
A50
A63
A75
A95
A110
AL9
AL9Z
AL12
AL12Z
AL16
AL16Z
AL26
AL30
AL40
AE45
AE50
AE63
AE75
TAL9
TAL12
TAL16
TAL26
TAL30
TAL40
TAE45
TAE50
TAE75
GA75
GAE75
UA16
UA26
UA30
UA50
UA63
UA75
UA95
UA110
UA16RA
UA26RA
UA30RA
UA50RA
UA63RA
UA75RA
UA95RA
UA110RA
UAF75RA
UAF95RA
UAF110RA
N22E
N31E
N40E
NL22E
NLZ22E
NL31E
NLZ31E
NL40E
NLZ40E
TNL22E
TNL31E
TNL40E
Date: 29/05/2024
Weight: 0.015KG
Measurements: 10X15X24
Locator: B1P2A
