Combo Broadband Directional Coupler DC-R10-ON200M
23 in stock- Code
- WS225
- Dispatch
- Within 1 business day for in-stock items.
- Top seller on Mercado Livre and eBay
- Business invoicing available
- Dispatch within 1 business day
- Secure payment
Choose the buyer type - we open the form with this product already filled in.
Main item details
- Brand
- Comba
- SKU / Internal code
- WS225
- Condition
- Condition shown in specs
- Stock
- 23 in stock
- Brand
- Comba
- Model
- DC-R10-ON200M
- Weight
- 0.326 kg
- Measurements
- 3x7x16
- Locator
- B5P2A
About this item

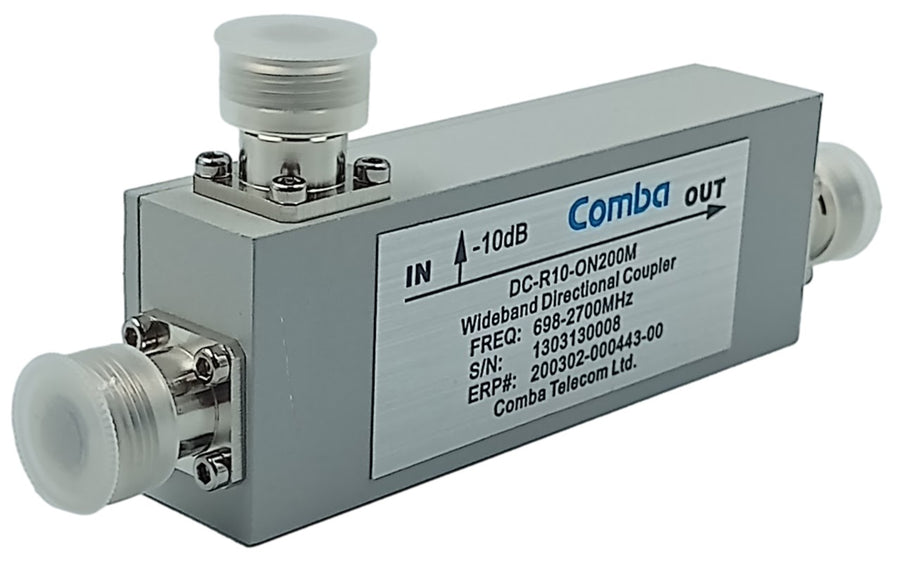

Combo DC-R10-ON200M Wideband Directional Coupler
New product in manufacturer's box
Model: DC-R10-ON200M
DC-Rxx-ON200M (xx=05,06…or 40, preset coupling value)
5,6,7,8,10,13,15,20,30,40dB, 698-2700MHz, N-Female, 200W
• Wideband design covers 698-2700MHz range
• 5,6,7,8,10,13,15,20,30 & 40dB coupling value
• Low insertion loss and VSWR
• Suitable for indoor and outdoor applications.
It is a device used in communication systems to direct and measure the power of an RF signal.
The main function of a wideband directional coupler is to split the power of an RF signal into two or more outputs, while directing most of the power to a specific output, called the "direct port". The other outputs, called "isolated ports" or "secondary ports", provide a fraction of the input RF signal, which can be monitored or directed to other devices.
These devices are designed to operate over a wide range of frequencies, generally in a wideband, which makes them suitable for applications that require a wide frequency response, such as wireless communication systems, radio networks, radar systems, and test and measurement instrumentation.
In addition to directing and splitting the RF signal, wideband directional couplers also offer isolation characteristics, meaning that the power flowing towards the secondary ports is isolated from the direct port and vice versa. This is important to prevent signal reflections and ensure the integrity of the RF signal.
Wideband directional couplers can have different designs and constructions, including cavity couplers, microstrip couplers, transmission line couplers, among others. The choice of directional coupler type depends on the system's technical specifications, the desired frequency range, and the RF signal power.
In summary, a wideband directional coupler is an essential device in communication systems that allows the splitting and directing of the RF signal, providing accurate measurement of signal power and ensuring adequate isolation between ports.
Date 24/05/2023
Measurements: 3x7x16
Dear customers, if the material is intended for resale, the ST (Tax Substitution) value may apply. If the transaction is subject to this tax, the responsibility for payment is exclusively the buyer's.
Cabo Eletro Comercial ltda thanks you
